HomeProductsIntegrated Circuits (ICs)PMIC - SupervisorsTPS3813K33DBVT

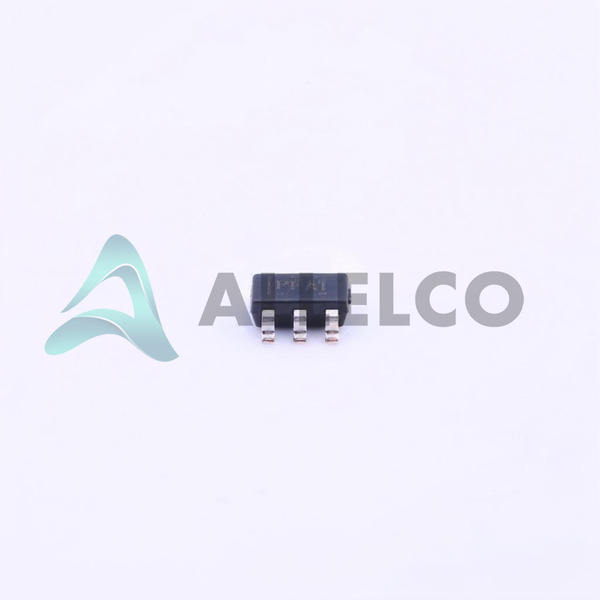

TPS3813K33DBVT Image
TPS3813K33DBVT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS3813K33DBVT - Texas Instruments

Manufacturer Part Number
TPS3813K33DBVT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS3813K33DBVT
ECAD Model
Parts Description
IC SUPERVISOR 1 CHANNEL SOT23-6
Detailed Description
Package
SOT-23-6
Data sheet
TPS3813J25/L30/K33/I50.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 25939

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS3813K33DBVT Tech Specifications
Texas Instruments - TPS3813K33DBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS3813K33DBVT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Threshold 2.93V
Type Simple Reset/Power-On Reset
Supplier Device Package SOT-23-6
Series -
Reset Timeout 20ms Minimum
Reset Active Low
Product Attribute Attribute Value
Package / Case SOT-23-6
Package Tape & Reel (TR)
Output Open Drain or Open Collector
Operating Temperature -40°C ~ 85°C (TA)
Number of Voltages Monitored 1
Mounting Type Surface Mount
Base Product Number TPS3813

Parts Introduction

Manufacturer Part Number

TPS3813K33DBVT

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) for power supply supervisory functions

Provides power-on reset and simple reset functions

Product Features and Performance

Monitors a single voltage

93V threshold voltage

20ms minimum reset timeout

Open drain or open collector reset output

-40°C to 85°C operating temperature range

Product Advantages

Simple and reliable power supply supervisor

Compact SOT-23-6 package

Suitable for space-constrained applications

Key Technical Parameters

Voltage threshold: 2.93V

Voltages monitored: 1

Reset output: Active low

Reset timeout: 20ms minimum

Quality and Safety Features

RoHS3 compliant

Suitable for reflow soldering

Compatibility

Compatible with a wide range of power supply and microcontroller applications

Application Areas

Power supply monitoring

Microcontroller reset control

Battery-powered devices

Industrial and consumer electronics

Product Lifecycle

Current product, no discontinuation planned

Replacement or upgrade options available from Texas Instruments

Several Key Reasons to Choose This Product

Simple and reliable power supply supervision

Compact and space-saving package

Wide operating temperature range

RoHS3 compliance for environmental safety

Compatibility with various power supply and microcontroller applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS3813K33DBVT

Product Attribute TPS3813K33DBVT TPS3813K33QDBVRQ1 TPS3813I50DBVR TPS3813K33DBVR
Part Number TPS3813K33DBVT TPS3813K33QDBVRQ1 TPS3813I50DBVR TPS3813K33DBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Series - Automotive, AEC-Q100 - -
Number of Voltages Monitored 1 1 1 1
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Reset Active Low Active Low Active Low Active Low
Output Open Drain or Open Collector Open Drain or Open Collector Open Drain or Open Collector Open Drain or Open Collector
Type Simple Reset/Power-On Reset Simple Reset/Power-On Reset Simple Reset/Power-On Reset Simple Reset/Power-On Reset
Supplier Device Package SOT-23-6 SOT-23-6 SOT-23-6 SOT-23-6
Base Product Number TPS3813 TPS3813 TPS3813 TPS3813
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 125°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Voltage - Threshold 2.93V 2.93V 4.55V 2.93V
Reset Timeout 20ms Minimum 20ms Minimum 20ms Minimum 20ms Minimum
Package / Case SOT-23-6 SOT-23-6 SOT-23-6 SOT-23-6

TPS3813K33DBVT Datasheet PDF
