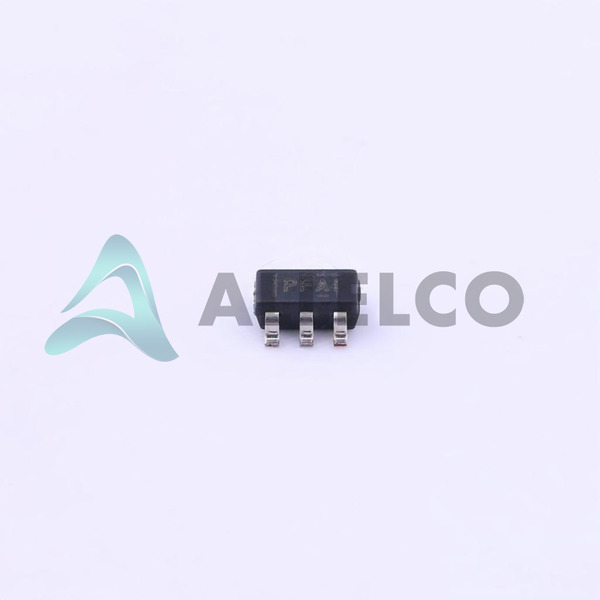

TPS3813K33DBVR - Texas Instruments

Manufacturer Part Number

TPS3813K33DBVR

Manufacturer

Texas Instruments

Introduction

The TPS3813K33DBVR is a voltage supervisor component designed for monitoring a single system voltage.

Product Features and Performance

Monitors 1 voltage level

93V fixed threshold voltage

Active low reset signal

20ms minimum reset timeout period

Operates over a temperature range of -40°C to 85°C

Simple Reset/Power-On Reset functionality

Product Advantages

High-accuracy voltage threshold ensures reliable monitoring

Low power consumption enhances system efficiency

Compact SOT-23-6 package saves space on PCBs

Key Technical Parameters

Voltage - Threshold: 2.93V

Reset: Active Low

Reset Timeout: 20ms Minimum

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package / Case: SOT-23-6

Number of Voltages Monitored: 1

Quality and Safety Features

Built to Texas Instruments' quality standards

Robust construction for industrial temperature ranges

Compatibility

Compatible with various microprocessor and microcontroller systems

Suitable for use in systems that require a single voltage monitoring

Application Areas

Consumer electronics

Industrial control systems

Automotive electronics

Computing devices

Telecommunication equipment

Product Lifecycle

The TPS3813K33DBVR is currently active

Not nearing discontinuation

Availability of replacements or future upgrades is manufacturer-dependent

Several Key Reasons to Choose This Product

Precision voltage monitoring for critical applications

Reliable performance in extreme temperature conditions

Suitable for space-constrained applications due to small package size

Backed by Texas Instruments' reputation for quality and reliability

Ease of integration into existing designs with standard surface mount packaging
