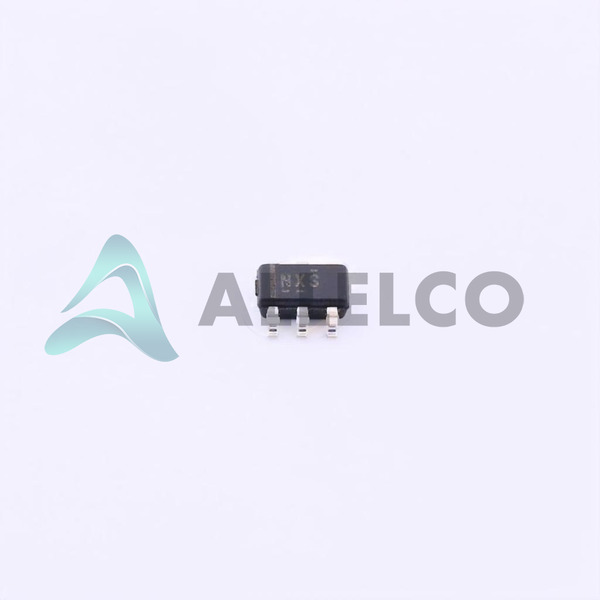

TPS3808G01MDBVTEP - Texas Instruments

Manufacturer Part Number

TPS3808G01MDBVTEP

Manufacturer

Texas Instruments

Introduction

The TPS3808G01MDBVTEP is a voltage supervisor from Texas Instruments designed for power management applications ensuring proper system function during power-up or power-down sequences.

Product Features and Performance

Supervises single voltage

Adjustable/selectable voltage threshold

Outputs include open drain or open collector

Features active low reset

Reset timeout is also adjustable/selectable

Designed for use in conditions ranging from -55°C to 125°C

Surface mount technology

Product Advantages

Flexible voltage monitoring options for varying applications

Customizable output and reset functionalities cater to specific system requirements

Robust temperature range ensuring reliability under extreme conditions

Compact design suitable for high-density circuit designs

Key Technical Parameters

Voltage Monitored: 1

Voltage Threshold: Adjustable/Selectable

Output Type: Open Drain or Open Collector

Reset Type: Active Low

Reset Timeout: Adjustable/Selectable

Operating Temperature: -55°C to 125°C

Quality and Safety Features

Built to operate reliably over a wide range of temperatures and conditions

Ensures system stability by monitoring power conditions precisely

Compatibility

Compatible with systems requiring precise voltage supervision

Mounting type compatible with SOT-23-6 layout components

Application Areas

Consumer Electronics

Automotive Systems

Communication Equipment

Computer Systems

Product Lifecycle

Currently active

Supported with continuous manufacturing and availability

Several Key Reasons to Choose This Product

Precision monitoring for a single voltage that secures system operations

Adjustable settings offering flexibility for diverse applications

Rugged design capable of operating under harsh environmental conditions

Texas Instruments' reputation for quality and reliability in power management solutions

Compact footprint enhancing high-density integration capability
