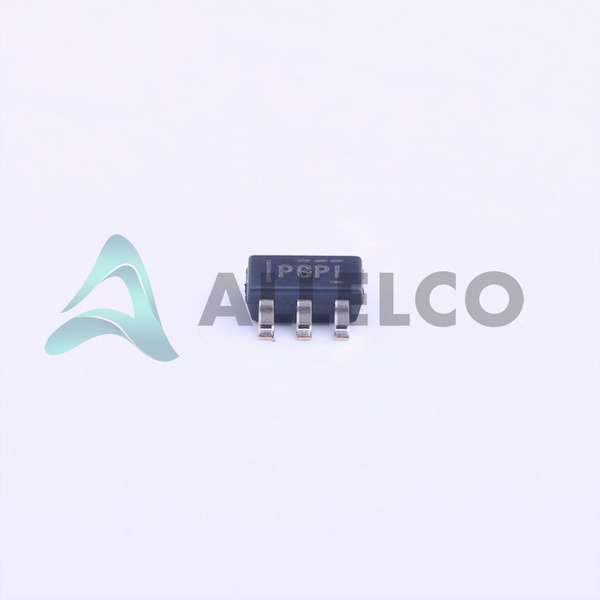

Manufacturer Part Number
TPS3806I33DBVR
Manufacturer
Texas Instruments
Introduction
This component is a Multi-Voltage Supervisor designed for Power Management applications, featuring dual voltage monitoring capabilities.
Product Features and Performance
Multi-Voltage Supervisor with two monitoring inputs.
Adjustable voltage threshold for second input.
Open Drain or Open Collector output.
Quick 5µs Typical Propagation Delay for rapid response.
Operates across a wide temperature range from -40°C to 85°C.
Available in a surface-mount, SOT-23-6 package for compact PCB layouts.
Product Advantages
Supports precise monitoring of system voltages to enhance reliability.
Flexible voltage threshold adjustment for broad application suitability.
Fast propagation delay ensures timely system responses to voltage deviations.
Robust operating temperature range suitable for challenging environmental conditions.
Key Technical Parameters
Number of Voltages Monitored: 2
Voltage Threshold: 3V, Adjustable for second voltage
Output Type: Open Drain or Open Collector
Reset Type: Active Low
Reset Timeout Delay: 5µs Typical Propagation Delay
Operating Temperature Range: -40°C to 85°C
Mounting Type: Surface Mount
Package: SOT-23-6
Quality and Safety Features
Manufactured by Texas Instruments, ensuring high-reliability and performance standards.
Compliant with industry safety and quality standards.
Compatibility
Suitable for use in systems requiring dual voltage supervision.
Can be easily integrated into various circuit designs thanks to its SOT-23-6 package.
Application Areas
Power management in computing systems
Monitoring of supply voltages in communication equipment
Battery-powered electronics supervision
Automotive electronics reliability enhancement
Product Lifecycle
Currently Active product status indicates it is not nearing discontinuation.
Availability of replacements or upgrades can be checked with Texas Instruments.
Several Key Reasons to Choose This Product
Precision voltage monitoring enhances system reliability.
Adjustable voltage threshold offers flexible application use.
Quick response time to voltage changes protects system components.
Supported by Texas Instruments' reputation for quality and reliability.
Wide operating temperature range makes it ideal for various environments.
