TPS3760A012DYYR - Texas Instruments

Manufacturer Part Number

TPS3760A012DYYR

Manufacturer

Texas Instruments

Introduction

The TPS3760A012DYYR is a highly integrated power management integrated circuit (PMIC) that provides a simple reset or power-on reset function.

Product Features and Performance

Operates over a wide temperature range of -40°C to 125°C

Monitors a single voltage input

Provides an active low reset output

Reset timeout up to 100s maximum

Threshold voltage of 0.8V

Open drain or open collector output

Product Advantages

Highly integrated design for simplified system implementation

Wide temperature range for versatile applications

Flexible reset timing and threshold voltage options

Key Technical Parameters

Manufacturer Part Number: TPS3760A012DYYR

Manufacturer: Texas Instruments

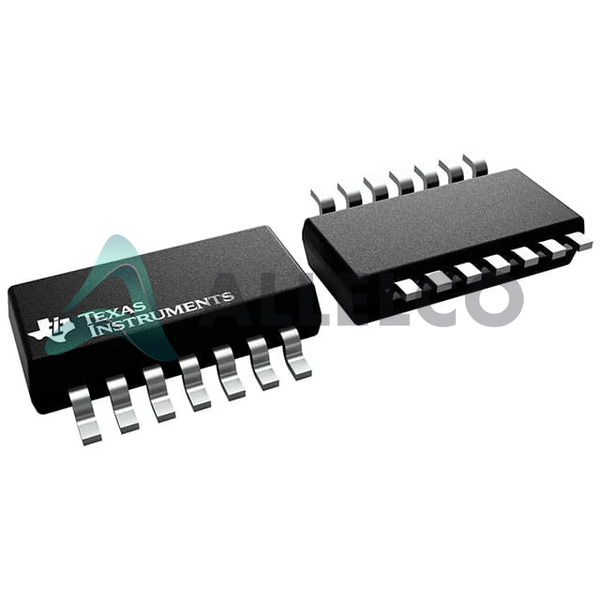

Package: SOT-23-14 Thin, Surface Mount

Operating Temperature: -40°C to 125°C

Reset Timeout: 100s Maximum

Voltage Threshold: 0.8V

Number of Voltages Monitored: 1

Reset Output: Active Low, Open Drain or Open Collector

Quality and Safety Features

RoHS3 compliant

Reliable performance in demanding environments

Compatibility

The TPS3760A012DYYR is compatible with a wide range of electronic systems and applications that require a simple reset or power-on reset function.

Application Areas

Embedded systems

Industrial automation

Consumer electronics

Communications equipment

Product Lifecycle

The TPS3760A012DYYR is an active product and is not nearing discontinuation. Replacement or upgrade options may be available from Texas Instruments.

Key Reasons to Choose This Product

Highly integrated design for simplified system implementation

Wide temperature range for versatile applications

Flexible reset timing and threshold voltage options

Reliable performance in demanding environments

Compatibility with a wide range of electronic systems and applications
