Manufacturer Part Number

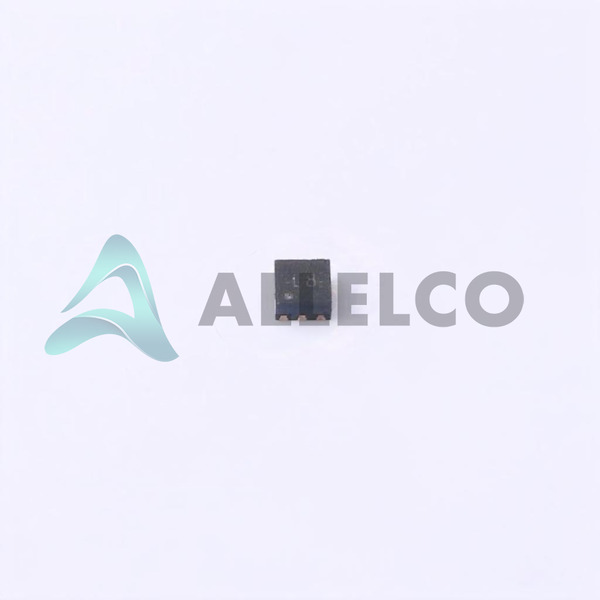

TPS3703A4085DSERQ1
Manufacturer
Texas Instruments
Introduction
The TPS3703A4085DSERQ1 is a state-of-the-art voltage supervisor designed to monitor power supply conditions in electronic systems.
Product Features and Performance
Voltage monitoring at 8.5V threshold
Simple Reset/Power-On Reset functionality
Supports open drain or open collector output configurations
Active low reset signal
Minimum reset timeout of 140ms
Operates over a wide temperature range from -40°C to 125°C
Automotive grade reliability
Product Advantages
Precision voltage monitoring ensuring system stability
Robust design suitable for harsh automotive environments
Extended operating temperature range suitable for various applications
Small form factor 6-WFDFN package saving board space
Key Technical Parameters
One voltage monitored
Voltage threshold set at 8.5V
Reset timeout at minimum 140ms
Operating temperature between -40°C and 125°C
Reset signal is active low
Quality and Safety Features
AEC-Q100 qualified for automotive applications
Designed for high reliability and robust performance
Compatibility
Surface Mount compatible
6-WSON (1.5x1.5) package
Application Areas
Automotive electronics
Power supply monitoring
Embedded systems
Industrial controls
Product Lifecycle
Active product status
Not nearing discontinuation
Replacement and upgrade options are available
Several Key Reasons to Choose This Product
Designed by renowned semiconductor manufacturer Texas Instruments
Monitors power supply conditions accurately with an 8.5V threshold
Offers versatile reset configurations for various system needs
Automotive grade product qualified for high-reliability applications
Extensive operating temperature range suitable for extreme conditions
Compact and efficient with industry-standard package for easy integration
