HomeProductsIntegrated Circuits (ICs)Linear - ComparatorsTPS3700DDCR

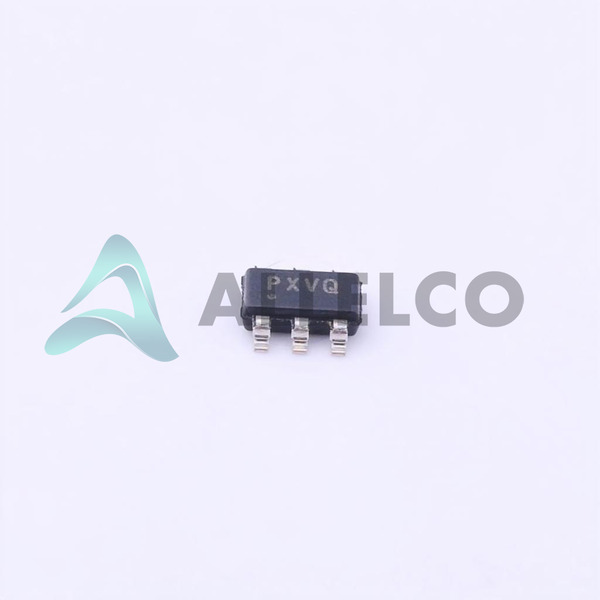

TPS3700DDCR Image
TPS3700DDCR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS3700DDCR - Texas Instruments

Manufacturer Part Number
TPS3700DDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS3700DDCR
ECAD Model
Parts Description
IC COMPARATOR 2 WINDW SOT23-THIN
Detailed Description
Package
SOT-23-6 Thin, TSOT-23-6
Data sheet
TPS3700.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 63090

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS3700DDCR Tech Specifications
Texas Instruments - TPS3700DDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS3700DDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single/Dual (±) 1.8V ~ 18V
Voltage - Input Offset (Max) -
Type Window
Supplier Device Package SOT-23-THIN
Series -
Propagation Delay (Max) 29µs
Package / Case SOT-23-6 Thin, TSOT-23-6
Package Tape & Reel (TR)
Output Type Open Drain
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of Elements 2
Mounting Type Surface Mount
Hysteresis 5.5mV
Current - Quiescent (Max) 11µA
Current - Output (Typ) -
Current - Input Bias (Max) -
CMRR, PSRR (Typ) -
Base Product Number TPS3700

Parts Introduction

Manufacturer Part Number

TPS3700DDCR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) for window comparators

Part of Texas Instruments' linear comparator product line

Product Features and Performance

2-element window comparator

Operates on single supply voltage from 1.8V to 18V

Low quiescent current of 11μA

Fast propagation delay of 29μs

5mV of hysteresis for noise immunity

Product Advantages

Wide supply voltage range

Low power consumption

Fast response time

Built-in hysteresis for stable operation

Key Technical Parameters

Package: SOT-23-6 Thin, TSOT-23-6

Mounting Type: Surface Mount

Operating Temperature: -40°C to 125°C

Compliance: RoHS3

Quality and Safety Features

RoHS3 compliant

Reliable surface mount package

Compatibility

Suitable for a variety of electronic systems and applications that require window comparator functionality

Application Areas

Industrial control systems

Battery management

Power supply monitoring

Sensor signal conditioning

Product Lifecycle

Active product

Replacement or upgrade parts available from Texas Instruments

Key Reasons to Choose This Product

Wide supply voltage range

Low power consumption

Fast response time

Built-in hysteresis for stable operation

Reliable surface mount package

RoHS3 compliance

Availability of replacement and upgrade options from the manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS3700DDCR

Product Attribute TPS3700DDCR TPS3700DSET TPS3700QDDCRQ1 TPS3700DDCT
Part Number TPS3700DDCR TPS3700DSET TPS3700QDDCRQ1 TPS3700DDCT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Hysteresis 5.5mV 5.5mV 5.5mV 5.5mV
Base Product Number TPS3700 TPS3700 TPS3700 TPS3700
Voltage - Input Offset (Max) - - - -
CMRR, PSRR (Typ) - - - -
Current - Output (Typ) - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Current - Quiescent (Max) 11µA 13µA 11µA 11µA
Voltage - Supply, Single/Dual (±) 1.8V ~ 18V 1.8V ~ 18V 1.8V ~ 18V 1.8V ~ 18V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Supplier Device Package SOT-23-THIN 6-WSON (1.5x1.5) SOT-23-THIN SOT-23-THIN
Propagation Delay (Max) 29µs 29µs 29µs 29µs
Type Window Window Window Window
Current - Input Bias (Max) - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Number of Elements 2 1 2 2
Series - - Automotive, AEC-Q100 -
Package / Case SOT-23-6 Thin, TSOT-23-6 6-WFDFN SOT-23-6 Thin, TSOT-23-6 SOT-23-6 Thin, TSOT-23-6
Output Type Open Drain Open Drain Open Drain Open Drain

TPS3700DDCR Datasheet PDF

Download TPS3700DDCR pdf datasheets and Texas Instruments documentation for TPS3700DDCR - Texas Instruments.
