Manufacturer Part Number

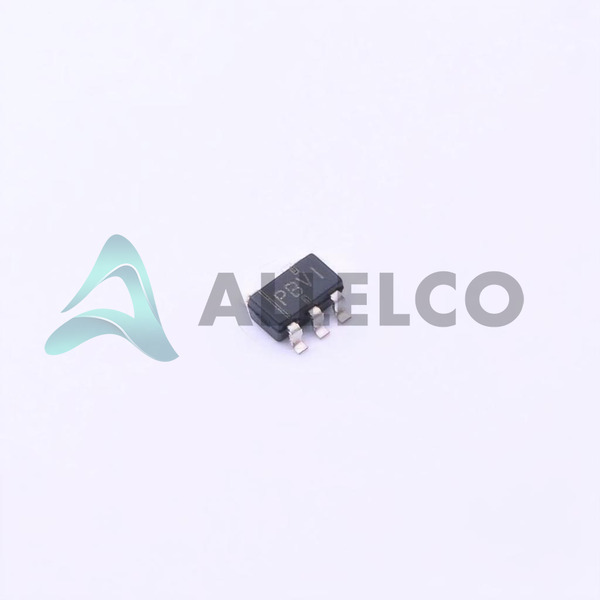

TPS3125J18DBVR
Manufacturer
Texas Instruments
Introduction
The TPS3125J18DBVR is a voltage supervisor device designed for power management applications, ensuring proper system function by monitoring the power supply voltage.
Product Features and Performance
Simple Reset/Power-On Reset functionality
Monitors one voltage level
Offers a push-pull, totem pole output
The reset signal is both active high and active low
Operating temperature range from -40°C to 85°C
Mounting type: Surface Mount
Packaged in SOT-23-5
Product Advantages
Compact design with a small footprint
High accuracy voltage threshold at 1.62V
Fast response time with 100ms minimum reset timeout
Versatile output suitable for interfacing with various logic families
Stable operation over a wide temperature range
Key Technical Parameters
Voltage Threshold: 1.62V
Reset Timeout: 100ms Minimum
Operating Temperature: -40°C to 85°C (TA)
Package/Case: SC-74A, SOT-753
Quality and Safety Features
Robust surface-mount package enhances reliability and durability
Built to ensure consistent performance under temperature fluctuations
Compatibility
Compatible with various microcontrollers and digital systems due to its simple I/O requirements and general specifications
Application Areas
Computers and computer peripherals
Microcontroller systems
Portable/battery-operated equipment
Industrial controllers
Product Lifecycle
Currently marked as active
No noted plans for discontinuation, ensuring long-term availability
Availability of replacements or upgrades not specified
Several Key Reasons to Choose This Product
High precision monitoring enhances system stability and performance
Flexible reset timeout feature allows for application-specific adjustments
Robust build suitable for diverse operating environments and applications
Active product lifecycle status ensures ongoing support and availability
Simple interface requirements facilitate easy integration into existing designs
