HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS27082LDDCR

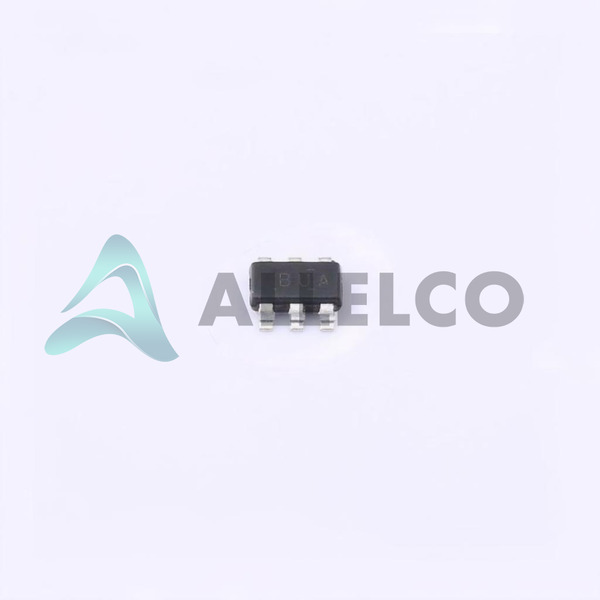

TPS27082LDDCR Image
TPS27082LDDCR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS27082LDDCR - Texas Instruments

Manufacturer Part Number
TPS27082LDDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS27082LDDCR
ECAD Model
Parts Description
IC PWR SWTCH P-CHAN 1:1 TSOT23-6
Package
SOT-23-6 Thin, TSOT-23-6
Data sheet
TPS27082L.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 75280

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS27082LDDCR Tech Specifications
Texas Instruments - TPS27082LDDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS27082LDDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 1.2V ~ 8V
Switch Type General Purpose
Supplier Device Package SOT-23-THIN
Series -
Rds On (Typ) 32mOhm
Ratio - Input:Output 1:1
Package / Case SOT-23-6 Thin, TSOT-23-6
Package Tape & Reel (TR)
Output Type P-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type -
Features Slew Rate Controlled
Fault Protection -
Current - Output (Max) 3A
Base Product Number TPS27082

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS27082LDDCR

Manufacturer

Texas Instruments

Introduction

High-Side Load Switch

Product Features and Performance

General Purpose Switch

Single Output

High Side Configuration

P-Channel Output Type

On/Off Interface

Slew Rate Controlled

Product Advantages

Simple Integration

Space-saving SOT-23-THIN Package

Key Technical Parameters

Voltage - Load: 1.2V to 8V

Current - Output (Max): 3A

Rds On (Typ): 32mOhm

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Extended Temperature Range

Compatibility

Compatible with Standard SOT-23-6 Footprint

Application Areas

Power Management Circuits

Portable Electronics

Battery-Powered Devices

Product Lifecycle

Not For New Designs

Potential Upgrades or Replacements Required

Several Key Reasons to Choose This Product

Large Operating Voltage Range

Maximum Output Current of 3A

Low On-Resistance for Enhanced Efficiency

Wide Operating Temperature Range

Compact Package for Space-Constrained Applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS27082LDDCR

Product Attribute TPS27082LDDCR TPS274160BRLHR TPS27081ADDCR TPS272C45ARHFR
Part Number TPS27082LDDCR TPS274160BRLHR TPS27081ADDCR TPS272C45ARHFR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Output Configuration High Side High Side High Side High Side
Output Type P-Channel N-Channel - N-Channel
Number of Outputs 1 4 1 2
Interface On/Off On/Off On/Off On/Off
Current - Output (Max) 3A 1.35A 3A 5.8A
Package / Case SOT-23-6 Thin, TSOT-23-6 28-WFQFN Exposed Pad SOT-23-6 Thin, TSOT-23-6 24-VFQFN Exposed Pad
Ratio - Input:Output 1:1 1:1 1:1 1:1
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Base Product Number TPS27082 TPS274160 TPS27081 TPS272C45
Switch Type General Purpose General Purpose General Purpose General Purpose
Supplier Device Package SOT-23-THIN 28-WQFN (4x5) SOT-23-THIN 24-VQFN (5x4)
Series - - - -
Voltage - Load 1.2V ~ 8V 5V ~ 36V 1.2V ~ 8V 6V ~ 36V
Input Type - Non-Inverting - Non-Inverting
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Fault Protection - Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO - Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO
Rds On (Typ) 32mOhm 160mOhm 32mOhm 45mOhm
Features Slew Rate Controlled - Slew Rate Controlled Load Discharge, Slew Rate Controlled
Operating Temperature -40°C ~ 125°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 85°C (TA) -40°C ~ 125°C (TJ)
