HomeProductsIntegrated Circuits (ICs)PMIC - Current Regulation/ManagementTPS259621DDAR

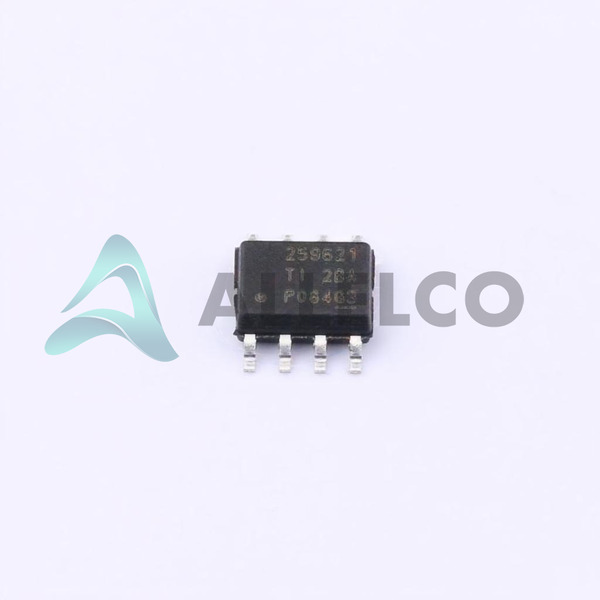

TPS259621DDAR Image
Image may be representation.
See specifications for product details.

TPS259621DDAR - Texas Instruments

Manufacturer Part Number
TPS259621DDAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS259621DDAR
ECAD Model
Parts Description
IC ELECT FUSE 10.4% 8SO PWRPAD
Detailed Description
Package
8-PowerSOIC (0.154", 3.90mm Width)
Data sheet
TPS2596xx Datasheet.pdf
RoHs Status
ROHS3 Compliant
In stock: 107770

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS259621DDAR Tech Specifications
Texas Instruments - TPS259621DDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS259621DDAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Input 2.7V ~ 19V
Supplier Device Package 8-SO PowerPad
Series -
Sensing Method -
Package / Case 8-PowerSOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Function Electronic Fuse
Current - Output 2A
Base Product Number TPS259621
Accuracy ±10.4%

Parts Introduction

Manufacturer Part Number

TPS259621DDAR

Manufacturer

Texas Instruments

Introduction

The TPS259621DDAR is a power management integrated circuit designed for current regulation and management, specifically functioning as an electronic fuse.

Product Features and Performance

Functions as an electronic fuse

Input voltage range from 2.7V to 19V

Supports output current up to 2A

Operating temperature from -40°C to 125°C

Surface mount package type

Housed in an 8-PowerSOIC package with a width of 3.90mm

Product Advantages

Wide input voltage range allows flexibility in usage across various applications

High temperature tolerance ensures reliability under extreme conditions

Key Technical Parameters

Voltage Input: 2.7V ~ 19V

Current Output: 2A

Operating Temperature: -40°C ~ 125°C

Accuracy: ±10.4%

Package: 8-PowerSOIC (0.154", 3.90mm Width)

Quality and Safety Features

Provides reliable current regulation within a 10.4% accuracy level

Robust temperature tolerance for safe operation under extreme environmental conditions

Compatibility

Suitable for surface mount technology for easier integration into various electronic assemblies

Application Areas

Power supply systems

Battery management systems

Overcurrent protection modules

Product Lifecycle

Status: Active

Not nearing discontinuation

Availability of replacements or upgrades not specified

Several Key Reasons to Choose This Product

Reliable and efficient in current management with electronic fuse functionality

Versatile voltage and temperature operating ranges suit a variety of environments

Compact package suitable for space-constrained applications

High precision and safety standards ensuring device protection

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS259621DDAR

Product Attribute TPS259621DDAR TPS259630DDAR TPS259571DSGR TPS259621DDAT
Part Number TPS259621DDAR TPS259630DDAR TPS259571DSGR TPS259621DDAT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package 8-SO PowerPad 8-SO PowerPad 8-WSON (2x2) 8-SO PowerPad
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-PowerSOIC (0.154", 3.90mm Width) 8-PowerSOIC (0.154", 3.90mm Width) 8-WFDFN Exposed Pad 8-PowerSOIC (0.154", 3.90mm Width)
Current - Output 2A 2A 4A 2A
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Accuracy ±10.4% ±10.4% ±7.5% ±10.4%
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C (TJ) -40°C ~ 125°C
Base Product Number TPS259621 TPS259630 TPS259571 TPS259621
Function Electronic Fuse Electronic Fuse Electronic Fuse Electronic Fuse
Voltage - Input 2.7V ~ 19V 2.7V ~ 19V 2.7V ~ 18V 2.7V ~ 19V
Series - - - -
Sensing Method - - - -

TPS259621DDAR Datasheet PDF

Download TPS259621DDAR pdf datasheets and Texas Instruments documentation for TPS259621DDAR - Texas Instruments.

HTML Datasheet
TPS2596xx Datasheet.pdf

Shipment

Delivery Time
