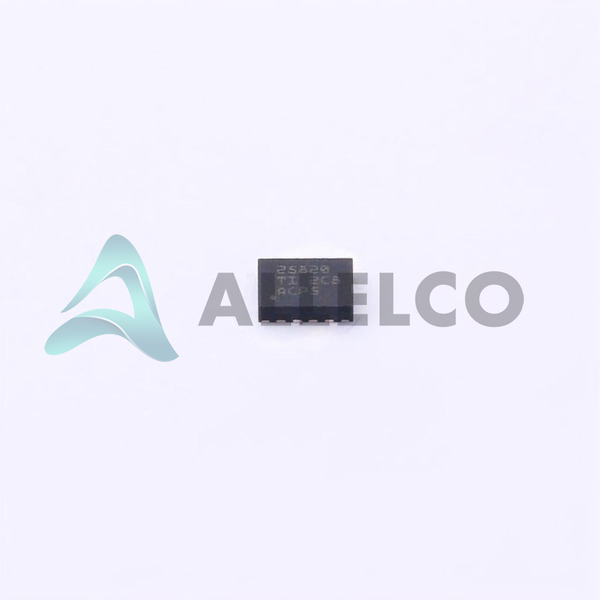

TPS25820DSSR - Texas Instruments

Manufacturer Part Number

TPS25820DSSR

Manufacturer

Texas Instruments

Introduction

The TPS25820DSSR is an integrated USB Type-C controller and power switch for USB Type-C and USB Power Delivery (PD) applications.

Product Features and Performance

USB Type-C and USB PD 2.0 compliant

Provides Cable Plug/Orientation and Presence Detection

Supports Dead Battery Provision

Integrated VCONN Power Switch

Overvoltage and Overcurrent Protection

Thermal Shutdown

Adjustable Current Limit

Product Advantages

Simplifies USB Type-C implementation

Minimizes board space requirements

Facilitates power management

Improves circuit protection

Reduces external component count

Key Technical Parameters

Voltage Supply Range: 4.5V to 5.5V

IORMAX (Operational current): Depending on application

Temperature Range: -40°C to 85°C

Compliance: USB Type-C and USB PD 2.0

Quality and Safety Features

Built-in Overvoltage Protection (OVP)

Overcurrent Protection (OCP)

Thermal Shutdown Protection (TSD)

Reverse Current Blocking

ESD Protection

Compatibility

Compatible with USB Type-C connectors

Suitable for USB 2.0, USB 3.1 Gen 1, and USB 3.1 Gen 2 communication

Application Areas

Smartphones

Tablets

Notebooks and Laptops

Wearable Devices

USB Power Hubs

Docking Stations

Wall Chargers

Product Lifecycle

Active status

Regular product updates

Longevity support may be provided

Reasons to Choose This Product

High integration suits compact design

Support for latest USB standards ensures future-proofing

Texas Instruments’ reputable quality and support

Enhanced power management capabilities

Advanced safety features protect consumer devices

Market leader in USB controller technology

Suited for a wide range of consumer electronics products
