Manufacturer Part Number

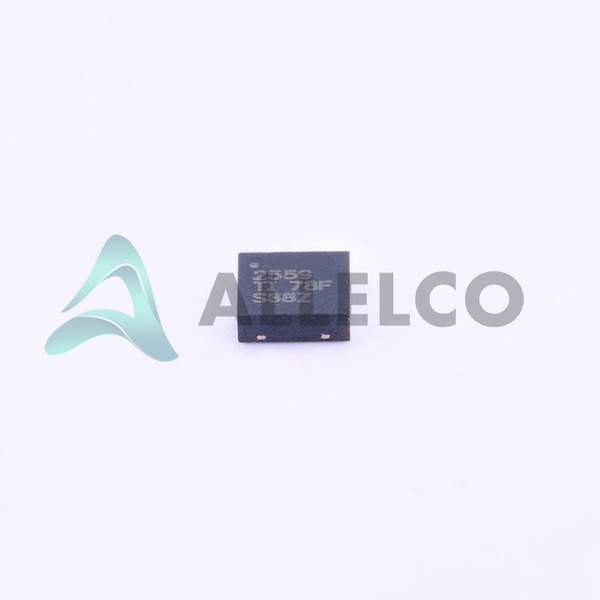

TPS2559DRCR
Manufacturer
Texas Instruments
Introduction
The TPS2559DRCR is a specialized power management integrated circuit designed for power distribution and load driving applications.
Product Features and Performance
General-purpose power distribution switch
Single output configuration
Slew Rate Controlled
Status flag for monitoring
Features adjustable current limiting and over-temperature protection
Under Voltage Lock Out (UVLO) for safety
Robust performance with operating temperature range from -40°C to 125°C
Product Advantages
Efficient power management with a typical Rds (On) of 13mOhm
High output current capacity up to 5.5A
Compact 10-VSON (3x3) package suitable for space-constrained applications
Key Technical Parameters
Output Voltage: 2.5V to 6.5V
Maximum Output Current: 5.5A
Typical Rds (On): 13mOhm
Operating Temperature Range: -40°C to 125°C
Quality and Safety Features
Adjustable current limiting
Over-temperature protection
Under Voltage Lock Out (UVLO)
Compatibility
Compatible with various high-side load applications requiring a load voltage between 2.5V and 6.5V
Application Areas
Power distribution for consumer electronics
Load drivers in communication equipment
Portable device power management
Product Lifecycle
This product is currently active with no indication of discontinuation. Replacement and upgrade options are available as needed.
Several Key Reasons to Choose This Product
High reliability and robust performance in challenging temperatures
Efficient power handling with low Rds (On)
Slew rate control for smoother operation
Advanced protection features ensure long product life and safety
Compact and versatile for integration into various applications
