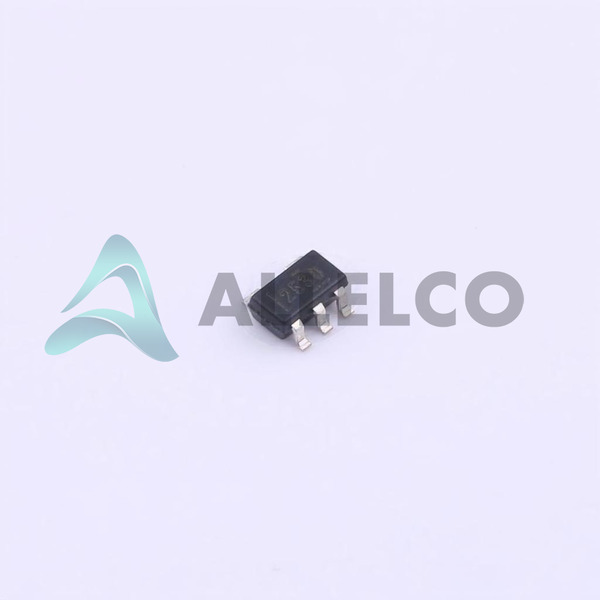

TPS2530DBVT - Texas Instruments

Manufacturer Part Number

TPS2530DBVT

Manufacturer

Texas Instruments

Introduction

The TPS2530DBVT is a high-side N-channel USB switch designed for power management in USB devices.

Product Features and Performance

Single USB switch

N-Channel output configuration

Control Interface: On/Off

Sleek Slew Rate Control

Integrated Status Flag notification

Product Advantages

Convenient packaging in Tape & Reel for automated assembly

Features fault protection mechanisms including current limiting and over-temperature protection

Supports a wide operating voltage range from 2.7V to 5.5V

Key Technical Parameters

Voltage Load: 2.7V ~ 5.5V

Current Output (Max): 500mA

Rds On (Typ): 97mOhm

Fault Protection: Current Limiting, Over Temperature, Reverse Current, UVLO

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Over Temperature Protection

Reverse Current Protection

Under Voltage Lock Out (UVLO)

Fixed Current Limiting

Compatibility

Designed to fit in a SOT-23-5, SC-74A, SOT-753 package configuration

Application Areas

USB power management and distribution

Consumer electronics

Portable devices

Product Lifecycle

Product status: Active

No indications of imminent discontinuation

Future replacements or upgrades available within Texas Instruments' portfolio

Several Key Reasons to Choose This Product

Ideal for compact device designs due to its SOT-23-5 small form factor

High reliability and protection features ensure device safety and durability

Wide operating temperature range suitable for various environments and applications

Status Flag enables easy monitoring of switch status

No external voltage supply needed, simplifying the design and reducing power consumption
