TPS23754PWPR - Texas Instruments

Manufacturer Part Number

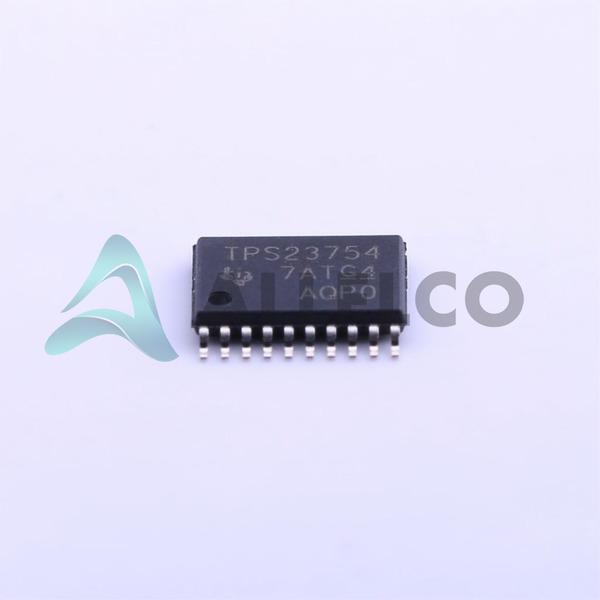

TPS23754PWPR

Manufacturer

Texas Instruments

Introduction

The TPS23754PWPR is a combined Power over Ethernet (PoE) powered device (PD) and DC/DC controller optimized for use in applications that require efficient power solutions and data over a single Ethernet cable.

Product Features and Performance

Integrated PD and DC/DC controller

Compliant with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE)

Single channel support

30 W maximum power output

Internal switches for both power and data

Wide supply voltage range of 0V to 57V

Low supply current of 920µA

Supports high-temperature operation from -40°C to 125°C

Product Advantages

Reduces component count and system cost with integrated PD and DC/DC functionality

Accommodates higher power applications with PoE+ compatibility

Facilitates easy implementation with surface mount packaging

Enables use in harsh environments with extended temperature range

Key Technical Parameters

One channel PoE controller

Power output capability up to 30W

Voltage supply range from 0V to 57V

Operating temperature range of -40°C to 125°C

Compliance with PoE standards 802.3at and 802.3af

Quality and Safety Features

Built-in thermal protection and overcurrent limitation

Robust package design suitable for industrial applications

Meets stringent IEEE standards for PoE applications

Compatibility

Compatible with Power over Ethernet enabled devices requiring up to 30W

Suitable for applications adhering to 802.3at (PoE+) and 802.3af (PoE) standards

Application Areas

IP cameras

VoIP phones

Wireless Access Points

Industrial control systems

Remote monitoring equipment

Networked appliances

Product Lifecycle

Product Status: Active

Not reported as nearing discontinuation, replacements or upgrades should be checked with the manufacturer for future-proofing

Several Key Reasons to Choose This Product

High integration for simplified design and reduced external components

Efficient power management suitable for a variety of PoE devices

Built-in safety features for reliable operation

Proven quality from a leading semiconductor manufacturer, Texas Instruments

Ability to operate across a wide range of temperatures for industrial applications

Support for both PoE and PoE+ devices, ensuring compatibility with newer high-power requirements

Available in bulk on Tape & Reel for streamlined manufacturing processes
