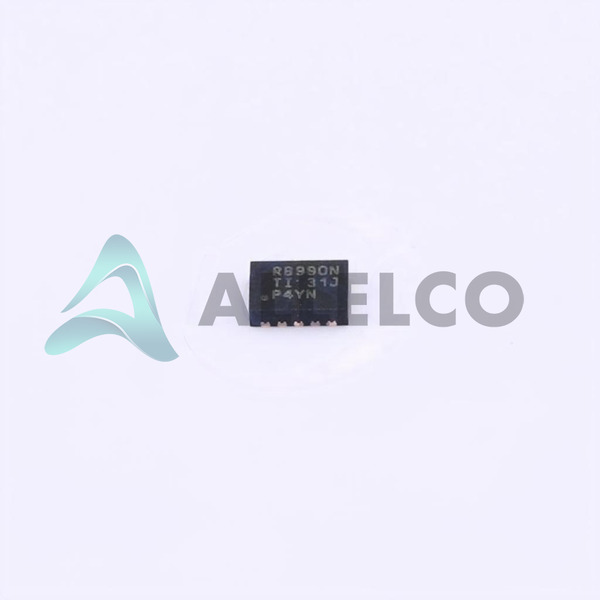

TPS22990NDMLR - Texas Instruments

Manufacturer Part Number

TPS22990NDMLR

Manufacturer

Texas Instruments

Introduction

The TPS22990NDMLR is a high performance power distribution switch by Texas Instruments, designed for power management applications in various electronic devices.

Product Features and Performance

Single output general purpose switch

N-Channel output type with high-side configuration

Integrated Power Good and Slew Rate Controlled features

Supports a load voltage range from 2.5V to 5.5V

Can deliver a maximum output current of 10A

Very low on-resistance of 3.9mOhm

Operates within a temperature range of -40°C to 105°C

Non-inverting input type

Product Advantages

Optimized power efficiency due to low Rds

Robust performance with high load voltage variability support

Enhanced system stability with Power Good indicator

Smooth operation with controlled slew rate to avoid voltage spikes

Key Technical Parameters

Voltage - Load: 2.5V ~ 5.5V

Current - Output (Max): 10A

Rds On (Typ): 3.9mOhm

Operating Temperature: -40°C ~ 105°C

Mounting Type: Surface Mount

Quality and Safety Features

Built to operate reliably in extreme temperature conditions

Precision engineering to maintain performance within specified limits

Compatibility

Suitable for use with a wide range of load voltages from 2.5V to 5.5V

Designed in a standard 10-WSON surface mount package for compatibility with typical mounting setups in electronics

Application Areas

Power management in consumer electronics

Smart devices and IoT applications

Portable and battery-powered devices

Computers and networking equipment

Product Lifecycle

The TPS22990NDMLR is in active product status, ensuring continued production and support

Long lifecycle with availability of replacements or upgrades

Several Key Reasons to Choose This Product

High efficiency power handling with minimal energy loss

Durable and reliable performance across a broad operating temperature range

Enhanced control features like Power Good and Slew Rate Controlled for device protection and stability

Flexible voltage accommodation and high current handling capabilities suitable for a variety of electronic applications

Standardized package ensuring compatibility with common circuit boards and devices
