Manufacturer Part Number

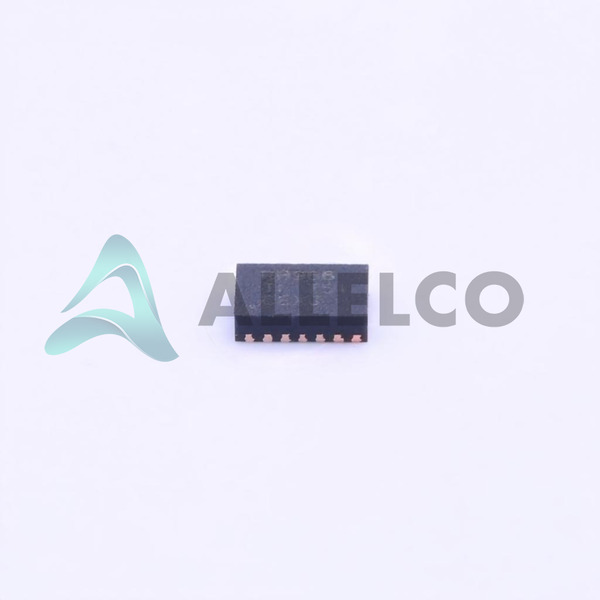

TPS22966DPUT
Manufacturer
Texas Instruments
Introduction
The TPS22966DPUT is a high-performance power distribution switch designed for power management applications.
Product Features and Performance
Dual-channel power switch
High-side or low-side output configuration
N-Channel MOSFET outputs
On/Off control interface
Load discharge feature
Surface mount package
Product Advantages
Low Rds(on) resistance of 18mOhm maximizes efficiency
High maximum output current of 6A supports large loads
Wide operating temperature range suitable for industrial applications
Key Technical Parameters
Voltage - Load: 2.5V to 5.5V
Voltage - Supply (Vcc/Vdd): 0.8V to 5.5V
Current - Output (Max): 6A
Rds On (Typ): 18mOhm
Number of Outputs: 2
Output Type: N-Channel
Operating Temperature: -40°C to 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 14-PowerWFDFN
Quality and Safety Features
Ensures stable operation in a wide temperature range
Designed to meet high industrial standards
Compatibility
Compatible with voltages ranging from 2.5V to 5.5V for various applications
Application Areas
Power Management Systems
Portable Electronics
Servers and Telecom Equipment
Industrial and Automotive Systems
Product Lifecycle
Active product with ongoing support and production
Not indicated as nearing discontinuation
Replacements or upgrades may be available if needed
Several Key Reasons to Choose This Product
High efficiency due to low Rds(on) value
Dual-channel output for versatile power delivery
Wide input voltage range catering to diverse power sources
Compact 14-WSON package suitable for space-constrained applications
Reliable operation in extreme temperatures from -40°C to 125°C
