TPS22959DNYR - Texas Instruments

Manufacturer Part Number

TPS22959DNYR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for power distribution and load driving

Part of Texas Instruments' Power Management IC (PMIC) product line

Product Features and Performance

N-Channel MOSFET power switch

Slew rate controlled output

Load discharge feature

1 output channel

High-side switch configuration

8V to 5.5V operating voltage range

Up to 15A maximum output current

4mOhm typical on-resistance (Rds_on)

Operating temperature range of -40°C to 85°C

Product Advantages

Efficient power distribution and load control

Integrated protection features

Flexible voltage and current handling capabilities

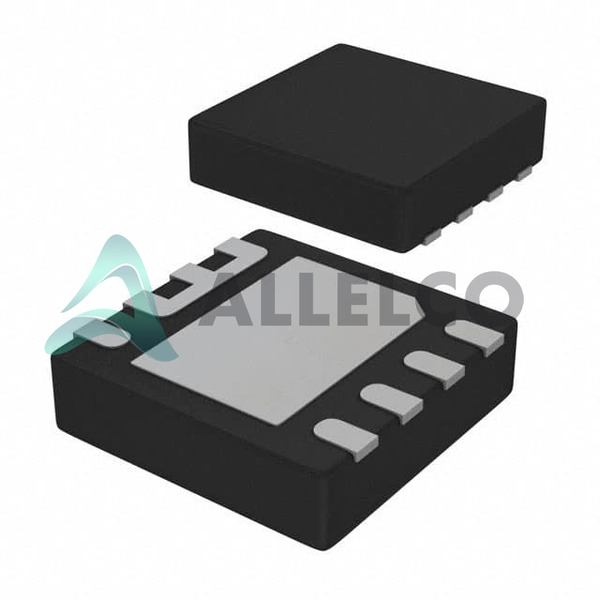

Compact 8-WSON (3x3) package

Key Technical Parameters

Package: 8-WDFN Exposed Pad

Mounting Type: Surface Mount

Input Type: Non-Inverting

Output Configuration: High Side

Ratio Input:Output: 1:01

Interface: On/Off

Switch Type: General Purpose

Quality and Safety Features

RoHS3 compliant

Reliable and robust design

Compatibility

Compatible with a wide range of power supply and load applications

Application Areas

Power management and distribution

Load driving in various electronic systems

Product Lifecycle

Current product, no plans for discontinuation

Replacement or upgrade options may be available from Texas Instruments

Several Key Reasons to Choose This Product

Efficient power distribution and control

Flexible voltage and current handling

Integrated protection features

Compact and space-saving package

Reliable and RoHS3 compliant design

Compatibility with a wide range of applications
