TPS22925CNYPHT - Texas Instruments

Manufacturer Part Number

TPS22925CNYPHT

Manufacturer

Texas Instruments

Introduction

The TPS22925CNYPHT is a power distribution switch designed specifically for managing power in electronic devices, ensuring efficient distribution and protection.

Product Features and Performance

Single output general-purpose switch

Slew rate controlled for improved system performance

High Side output configuration with N-Channel output type

Reverse current fault protection enhances device safety

Operates across a wide voltage range from 0.65V to 3.6V

Supports a maximum output current of 3A

Ultra-low Rds (on) resistance of 9.2mOhm at typical settings

Product Advantages

Efficient power management and distribution

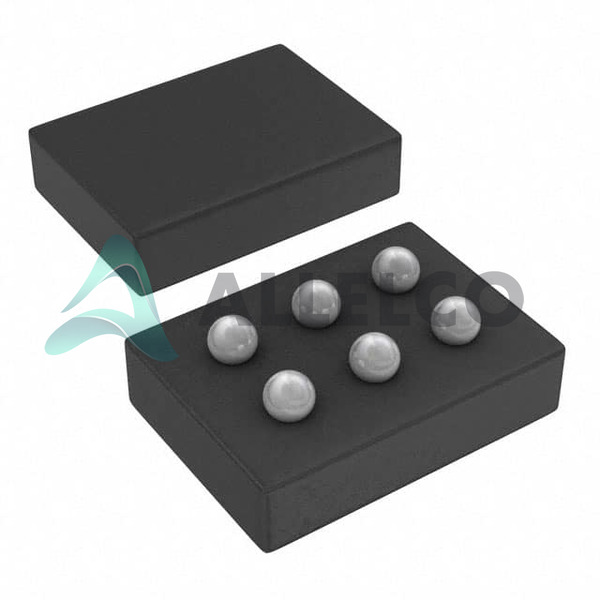

Compact 6-DSBGA package ideal for space-constrained applications

Enhanced system safety with built-in reverse current protection

Robust performance with operating temperatures ranging from -40°C to 105°C

Key Technical Parameters

Number of Outputs: 1

Output Configuration: High Side

Output Type: N-Channel

Voltage - Load: 0.65V ~ 3.6V

Current - Output (Max): 3A

Rds On (Typ): 9.2mOhm

Operating Temperature: -40°C ~ 105°C (TA)

Quality and Safety Features

Reverse Current Fault Protection

Robust operating temperature range for high reliability

Compatibility

Compatible with various electronic devices requiring power management

Application Areas

Consumer Electronics

Portable Devices

Wearable Technology

Smart Home Devices

Product Lifecycle

Currently active with ongoing manufacturer support

Several Key Reasons to Choose This Product

Exceptionally low Rds (on) for minimal power loss

High current capability up to 3A supports a wide range of applications

Compact and efficient design suitable for high-density PCB layouts

Built-in fault protection ensures long-term reliability and safety

Broad operating temperature range suitable for diverse environments and applications

Available in tape and reel packaging for streamlined manufacturing and assembly
