HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2064CDGNR-2

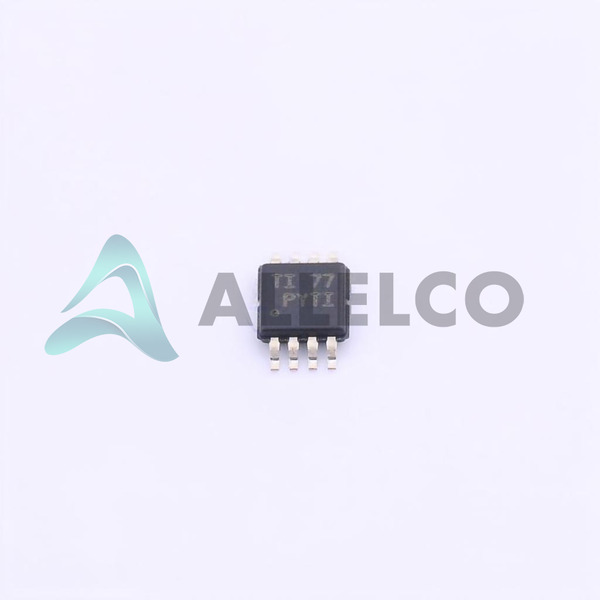

TPS2064CDGNR-2 Image
TPS2064CDGNR-2 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2064CDGNR-2 - Texas Instruments

Manufacturer Part Number
TPS2064CDGNR-2
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2064CDGNR-2
ECAD Model
Parts Description
IC PWR SWITCH N-CHAN 1:2 8MSOP
Detailed Description
Package
8-TSSOP, 8-MSOP (0.118', 3.00mm Width) Exposed Pad
Data sheet
TPS20xxC(-2).pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 53440
  • Unit Price: $1.32
  • Subtotal: $0.00

Want a better price?
Please Add to Cart, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.32 $1.32
10+ $1.182 $11.82
25+ $1.122 $28.05
100+ $0.922 $92.20
250+ $0.861 $215.25
500+ $0.761 $380.50
1000+ $0.601 $601.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2064CDGNR-2 Tech Specifications
Texas Instruments - TPS2064CDGNR-2 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2064CDGNR-2

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 4.5V ~ 5.5V
Switch Type General Purpose
Supplier Device Package 8-HVSSOP
Series -
Rds On (Typ) 70mOhm
Ratio - Input:Output 1:2
Package / Case 8-TSSOP, 8-MSOP (0.118', 3.00mm Width) Exposed Pad
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 2
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Current - Output (Max) 1.5A
Base Product Number TPS2064

Parts Introduction

Manufacturer Part Number

TPS2064CDGNR-2

Manufacturer

Texas Instruments

Introduction

High-Side N-Channel Power Distribution Switch

Product Features and Performance

2-channel high-side N-channel switch

5A continuous current per channel

70mΩ typical on-resistance

Current limiting, overtemperature, reverse current, and UVLO protection

Status flag output

Wide 4.5V to 5.5V operating voltage range

-40°C to 125°C operating temperature range

Product Advantages

Robust protection features

High current capability

Low on-resistance

Compact 8-pin HVSSOP package

Key Technical Parameters

Input Voltage Range: 4.5V to 5.5V

Output Current (Max): 1.5A per channel

On-Resistance (Typical): 70mΩ

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

RoHS3 compliant

Overtemperature, overcurrent, and reverse current protection

Compatibility

Designed for general-purpose power distribution and load switching applications

Application Areas

Power distribution and load switching in industrial, automotive, and consumer electronics applications

Product Lifecycle

Currently in production

No known plans for discontinuation

Replacement or upgrade options available from Texas Instruments

Several Key Reasons to Choose This Product

Robust protection features ensure reliable and safe operation

High current capability and low on-resistance enable efficient power distribution

Compact 8-pin HVSSOP package allows for space-constrained designs

Wide operating temperature range supports a variety of environmental conditions

Texas Instruments' reputation for quality and reliability in the semiconductor industry

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2064CDGNR-2

Product Attribute TPS2064CDGNR-2 TPS2064CDGNR TPS2064DGNR TPS2064DGNRG4
Part Number TPS2064CDGNR-2 TPS2064CDGNR TPS2064DGNR TPS2064DGNRG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Switch Type General Purpose General Purpose General Purpose General Purpose
Supplier Device Package 8-HVSSOP 8-HVSSOP 8-HVSSOP 8-HVSSOP
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Output Configuration High Side High Side High Side High Side
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Features Status Flag Load Discharge, Status Flag Status Flag Status Flag
Voltage - Load 4.5V ~ 5.5V 4.5V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Rds On (Typ) 70mOhm 70mOhm 70mOhm 70mOhm
Number of Outputs 2 2 2 2
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) 0°C ~ 105°C (TJ) 0°C ~ 105°C (TJ)
Ratio - Input:Output 1:2 1:2 1:2 1:2
Package / Case 8-TSSOP, 8-MSOP (0.118', 3.00mm Width) Exposed Pad 8-TSSOP, 8-MSOP (0.118', 3.00mm Width) Exposed Pad 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Base Product Number TPS2064 TPS2064 TPS2064 TPS2064
Current - Output (Max) 1.5A 1.5A 1.5A 1.5A
Interface On/Off On/Off On/Off On/Off
Output Type N-Channel N-Channel N-Channel N-Channel
Input Type Non-Inverting Non-Inverting Non-Inverting Non-Inverting
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Series - - - -

TPS2064CDGNR-2 Datasheet PDF

Download TPS2064CDGNR-2 pdf datasheets and Texas Instruments documentation for TPS2064CDGNR-2 - Texas Instruments.

PCN Assembly/Origin
2.73KHz.pdf
HTML Datasheet
TPS20xxC(-2).pdf
