HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2041BDBVT

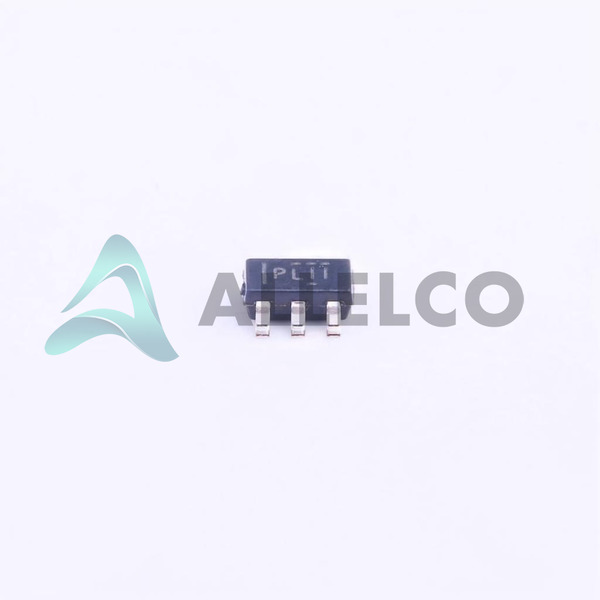

TPS2041BDBVT Image
TPS2041BDBVT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS2041BDBVT - Texas Instruments

Manufacturer Part Number
TPS2041BDBVT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2041BDBVT
ECAD Model
Parts Description
IC PWR SWITCH N-CHAN 1:1 SOT23-5
Detailed Description
Package
SC-74A, SOT-753
Data sheet
TPS2041B-44B, 51B-54B Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 58270

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS2041BDBVT Tech Specifications
Texas Instruments - TPS2041BDBVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2041BDBVT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.7V ~ 5.5V
Switch Type General Purpose
Supplier Device Package SOT-23-5
Series -
Rds On (Typ) 95mOhm
Ratio - Input:Output 1:1
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Inverting
Features -
Fault Protection Current Limiting (Fixed), Over Temperature, UVLO
Current - Output (Max) 500mA
Base Product Number TPS2041

Parts Introduction

Manufacturer Part Number

TPS2041BDBVT

Manufacturer

Texas Instruments

Introduction

Power Distribution Switch for USB and other applications

Product Features and Performance

Single-channel power distribution switch

Supports 2.7V to 5.5V voltage range

500mA maximum output current

Fixed current limiting

Over-temperature protection

Under-voltage lockout (UVLO)

95mOhm typical Rds(on)

Inverting input type

Surface mount SOT-23-5 package

Product Advantages

Enhanced system protection

Minimal power dissipation

High side N-Channel MOSFET

Ease of use with on/off interface

Compact size for space-sensitive applications

Key Technical Parameters

500mA max output current

7V to 5.5V load voltage

95mOhm typical on resistance

Operating temperature from -40°C to 85°C

Quality and Safety Features

Fixed current limiting

Over temperature protection

Under-voltage lockout

Compatibility

Compatible with USB and general-purpose power distribution needs

Application Areas

USB hubs

Portable devices

Peripheral power management

Product Lifecycle

Active product

Continued manufacturing and availability

Several Key Reasons to Choose This Product

Efficient power distribution for single output

Robust safety features maintain system integrity

Suitable for a wide range of operating temperatures

Convenient tape and reel packaging for automated manufacturing

From a reputable manufacturer known for quality and reliability

Optimized for USB and portable electronics power management

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2041BDBVT

Product Attribute TPS2041BDBVT TPS2041CDBVR TPS2041BDRG4 TPS2041BQDBVRQ1
Part Number TPS2041BDBVT TPS2041CDBVR TPS2041BDRG4 TPS2041BQDBVRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Switch Type General Purpose USB Switch General Purpose General Purpose
Output Configuration High Side High Side High Side High Side
Series - - - Automotive, AEC-Q100
Rds On (Typ) 95mOhm 97mOhm 70mOhm 105mOhm
Input Type Inverting Inverting Inverting Inverting
Current - Output (Max) 500mA 500mA 500mA 500mA
Output Type N-Channel N-Channel N-Channel N-Channel
Number of Outputs 1 1 1 1
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Interface On/Off On/Off On/Off On/Off
Ratio - Input:Output 1:1 1:1 1:1 1:1
Base Product Number TPS2041 TPS2041 TPS2041 TPS2041
Fault Protection Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, UVLO
Package / Case SC-74A, SOT-753 SC-74A, SOT-753 8-SOIC (0.154", 3.90mm Width) SC-74A, SOT-753
Supplier Device Package SOT-23-5 SOT-23-5 8-SOIC SOT-23-5
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 125°C (TA)
Voltage - Load 2.7V ~ 5.5V 4.5V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Features - - - -
