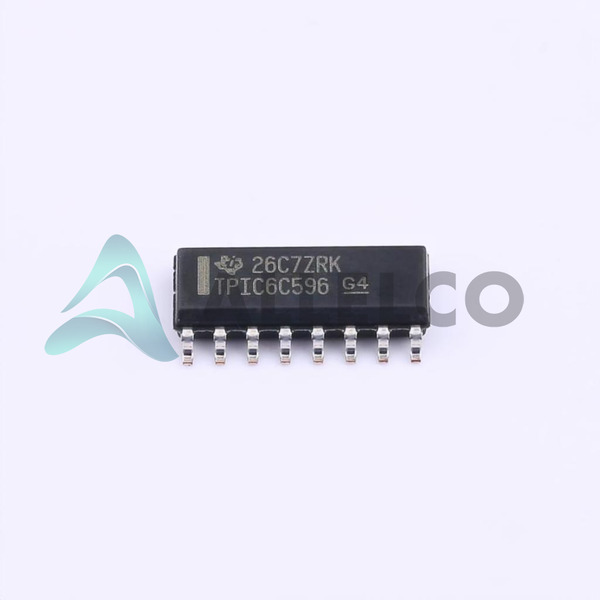

TPIC6C596DR - Texas Instruments

Manufacturer Part Number

TPIC6C596DR

Manufacturer

Texas Instruments

Introduction

The TPIC6C596DR is a power logic 8-bit shift register from Texas Instruments' TPIC series designed for serial-to-parallel data conversion with open-drain outputs.

Product Features and Performance

8-bit serial-to-parallel data conversion

Open-drain outputs for direct drive applications

Built-in power DMOS transistors

Enhanced thermal performance

Capable of sinking high currents

Edge-triggered for precise data shifts

Monolithic integration of resistors and protection diodes

Product Advantages

Streamlines power and data handling in digital control systems

High voltage and current handling simplifies design on high-power setups

Reduces component count leading to simpler PCB layouts and lower system costs

Robust output drive capacity ideal for bus-oriented applications

Key Technical Parameters

Logic Type: Shift Register

Output Type: Open Drain

Number of Elements: 1

Number of Bits per Element: 8

Voltage Supply: 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package / Case: 16-SOIC

Quality and Safety Features

Overtemperature protection

Integration of diodes for input and output ESD protection

Compatibility

Compatible with 5V logic systems

Interfaceable with microcontrollers and digital signal processors

Application Areas

LED lighting systems

Digital display boards

Relay control circuits

Power management systems

Industrial automation

Product Lifecycle

Product Status: Last Time Buy

Recommendations for replacements or upgrades can be obtained from Texas Instruments as this product is nearing discontinuation

Several Key Reasons to Choose This Product

Reliability and long-term performance from a reputable manufacturer, Texas Instruments

High current sinking capability suitable for driving LEDs and relays

Broad operating temperature range making it suitable for industrial applications

Simple and efficient data handling with serial-to-parallel conversion

Reduces system complexity and potential points of failure with integrated protection features
