Manufacturer Part Number

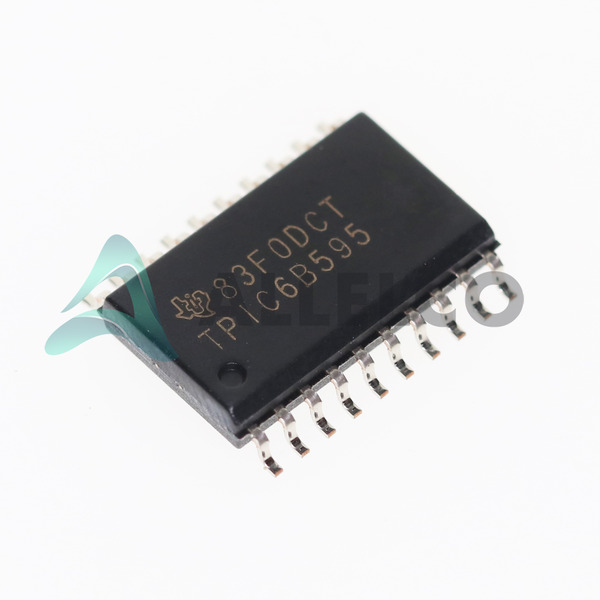

TPIC6B595DW
Manufacturer
Texas Instruments
Introduction
The TPIC6B595DW is a high-voltage, high-current shift register designed for use in systems that require relatively high load power.
Product Features and Performance
Single 8-bit shift register
Output type: Open drain
Voltage supply range from 4.5V to 5.5V
Capable of handling high-voltage and high-current loads
Operating temperature range from -40°C to 125°C
Surface mount, 20-SOIC package
Product Advantages
Allows for simplified control with a serial interface
Robust performance in extreme temperature conditions
Suitable for driving a wide range of high-power applications
Key Technical Parameters
Logic Type: Shift Register
Number of Elements: 1
Number of Bits per Element: 8
Function: Serial to Parallel, Serial
Voltage Supply: 4.5V ~ 5.5V
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package: 20-SOIC (0.295", 7.50mm Width)
Quality and Safety Features
Designed to comply with stringent industrial standards for reliability and safety
Compatibility
Compatible with various microcontrollers for ease of integration
Application Areas
Industrial controls
Automotive systems
LED displays
Power management systems
Product Lifecycle
Obsolete product
Potential availability of replacements or upgrades is advisable to check with manufacturer
Several Key Reasons to Choose This Product
Reliable operation in a wide range of environmental conditions
High current handling capability suited for power-demanding applications
Simplified connectivity that reduces system complexity
Trusted manufacturer with a reputation for quality and robustness in electronic components
