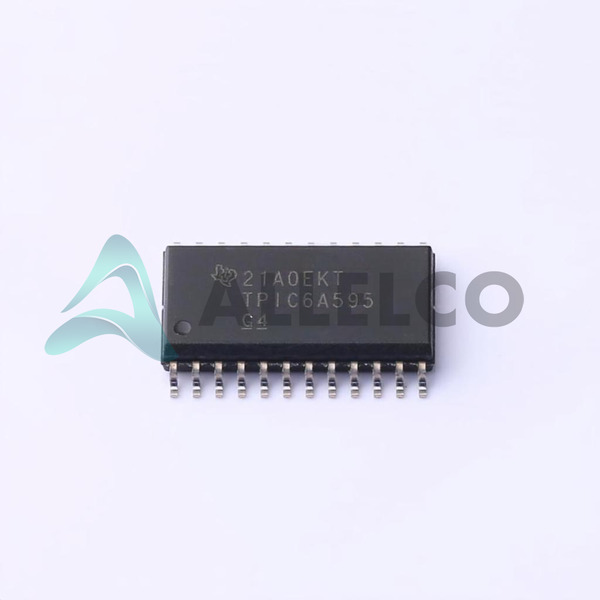

TPIC6A595DWR - Texas Instruments

Manufacturer Part Number

TPIC6A595DWR

Manufacturer

Texas Instruments

Introduction

The TPIC6A595DWR is a monolithic, high-voltage, high-current power logic shift register designed for use with systems that require relatively high load power.

Product Features and Performance

Integrates an 8-bit shift register and output latches

Features 8 low-side MOSFET output drivers

Compatible with serial input

Output currents of 350 mA per channel

Enhanced thermal performance

Shift register capable of direct drive from microprocessors

Product Advantages

High current drive capability

Reduced system power losses due to low ON-state resistance of output drivers

Built-in clamp diodes for inductive load transient suppression

Simplifies PLC (Programmable Logic Controller) interface with built-in serial-to-parallel converting capability

Key Technical Parameters

Logic Type: Shift Register

Output Type: Open Drain

Number of Elements: 1

Number of Bits per Element: 8

Voltage Supply: 4.5V to 5.5V

Operating Temperature Range: -40°C to 125°C

Mounting Type: Surface Mount

Package / Case: 24-SOIC

Quality and Safety Features

Overtemperature shutdown

Compliance with RoHS standards

Compatibility

Interfaceable with most microprocessors

Excellent for use in power relay replacement

Compatible with existing 5V systems

Application Areas

Industrial control systems

High-power LED driving

Motor control circuits

Relay replacement in higher voltage and current applications

Product Lifecycle

Status: Active

Availability of replacements or upgrades is not indicated as a product concern

Reasons to Choose This Product

High integration reduces component count and design complexity

Texas Instruments’ reputation for quality and reliability in the industry

Supports high temperature environments making it suitable for industrial applications

Availability in tape and reel packaging for automated assembly processes

Direct interfacing with microcontrollers simplifies integration into designs
