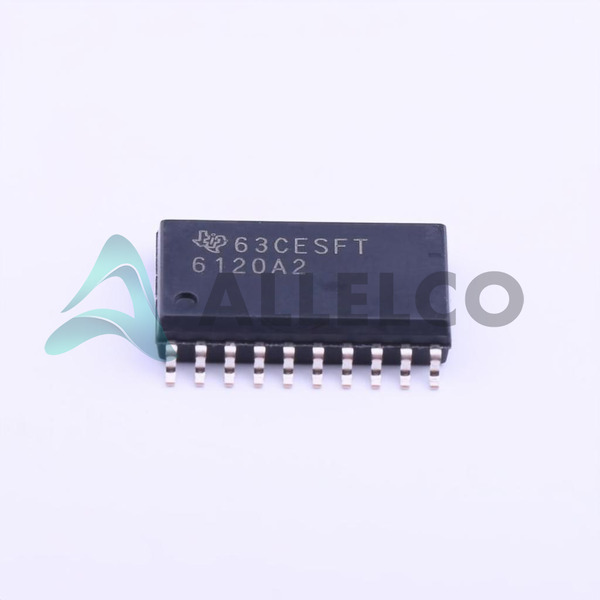

TPA6120A2DWPR - Texas Instruments

Manufacturer Part Number

TPA6120A2DWPR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for audio amplification

Designed for headphone and audio applications

Product Features and Performance

Differential input design

Short-circuit and thermal protection

80 mW output power per channel at 600 ohm load

Operates from 10 V to 30 V or ±5 V to ±15 V supplies

Class AB amplifier topology

Wide operating temperature range: -40°C to 85°C

Product Advantages

Efficient and reliable audio amplification

Robust protection against overcurrent and overheating

Flexibility in power supply options

Suitable for a variety of headphone and audio applications

Key Technical Parameters

Supply Voltage: 10 V to 30 V or ±5 V to ±15 V

Output Power: 80 mW per channel at 600 ohm load

Amplifier Class: Class AB

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Short-circuit and thermal protection

Compatibility

Suitable for headphone and audio applications

Application Areas

Portable audio devices

Home audio systems

Professional audio equipment

Product Lifecycle

Current product, no discontinuation or replacement plans

Several Key Reasons to Choose This Product

Efficient and reliable audio amplification

Robust protection features for safe operation

Flexible power supply options

Wide operating temperature range for versatile applications

RoHS3 compliance for environmental responsibility
