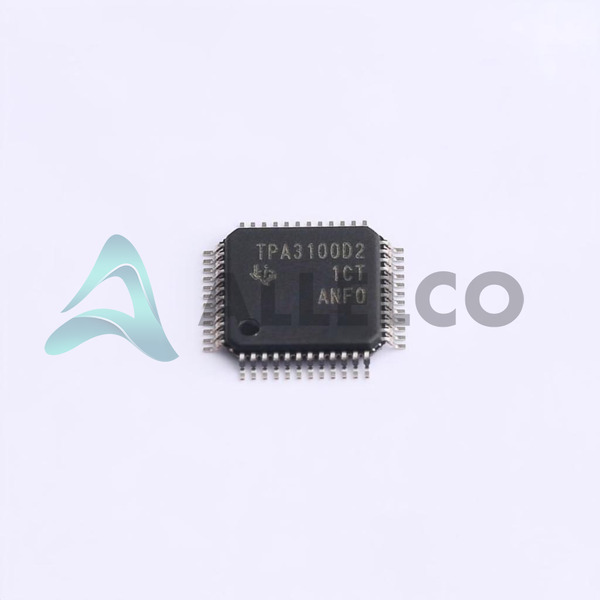

TPA3100D2PHPR - Texas Instruments

Manufacturer Part Number
TPA3100D2PHPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPA3100D2PHPR
ECAD Model
Parts Description
IC AMP CLSS D STER 21.8W 48HTQFP
Detailed Description
Package
48-PowerTQFP
Data sheet
TPA3100D2.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 7757

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPA3100D2PHPR Tech Specifications
Texas Instruments - TPA3100D2PHPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPA3100D2PHPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 10V ~ 26V
Type Class D
Supplier Device Package 48-HTQFP (7x7)
Series -
Package / Case 48-PowerTQFP
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Type 2-Channel (Stereo)
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Max Output Power x Channels @ Load 21.8W x 2 @ 8Ohm
Features Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown
Base Product Number TPA3100

Parts Introduction

Manufacturer Part Number

TPA3100D2PHPR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) for audio applications

Product Features and Performance

Differential inputs

Mute function

Short-circuit and thermal protection

Shutdown mode

Class D amplifier

8W x 2 channels @ 8Ohm load

Wide supply voltage range: 10V ~ 26V

Operating temperature: -40°C ~ 85°C

Product Advantages

High power output

Efficient Class D amplifier design

Comprehensive protection features

Wide operating voltage and temperature range

Key Technical Parameters

Package: 48-HTQFP (7x7)

Mounting type: Surface mount

Output type: 2-channel (stereo)

Quality and Safety Features

RoHS3 compliant

Short-circuit and thermal protection

Compatibility

Can be used in various audio applications

Application Areas

Audio amplifiers

Multimedia systems

Home theater systems

Professional audio equipment

Product Lifecycle

Current product, not nearing discontinuation

Replacement or upgrade options available from Texas Instruments

Key Reasons to Choose This Product

High-power and efficient Class D amplifier design

Versatile features including protection and control functions

Wide operating voltage and temperature range

RoHS compliance for environmental considerations

Supported by Texas Instruments, a leading semiconductor manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPA3100D2PHPR

Product Attribute TPA3100D2PHPR TPA302DR TPA3110D2PWP TPA301DR
Part Number TPA3100D2PHPR TPA302DR TPA3110D2PWP TPA301DR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Max Output Power x Channels @ Load 21.8W x 2 @ 8Ohm 300mW x 2 @ 8Ohm 15W x 2 @ 8Ohm 700mW x 1 @ 8Ohm
Series - - SpeakerGuard™ -
Output Type 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo) 1-Channel (Mono)
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply 10V ~ 26V 2.7V ~ 5.5V 8V ~ 26V 2.5V ~ 5.5V
Features Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown Short-Circuit and Thermal Protection, Shutdown Differential Inputs, Short-Circuit and Thermal Protection, Shutdown Short-Circuit and Thermal Protection, Shutdown
Supplier Device Package 48-HTQFP (7x7) 8-SOIC 28-HTSSOP 8-SOIC
Base Product Number TPA3100 TPA302 TPA3110 TPA301
Package / Case 48-PowerTQFP 8-SOIC (0.154", 3.90mm Width) 28-PowerTSSOP (0.173", 4.40mm Width) 8-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR) Tape & Reel (TR) Tube Tape & Reel (TR)
Type Class D Class AB Class D Class AB

TPA3100D2PHPR Datasheet PDF

Download TPA3100D2PHPR pdf datasheets and Texas Instruments documentation for TPA3100D2PHPR - Texas Instruments.

PCN Assembly/Origin
Qualification Mold Compound 30/Sep/2014.pdf
HTML Datasheet
TPA3100D2.pdf
