HomeProductsIntegrated Circuits (ICs)Embedded - DSP (Digital Signal Processors)TMS320VC5501ZAV300

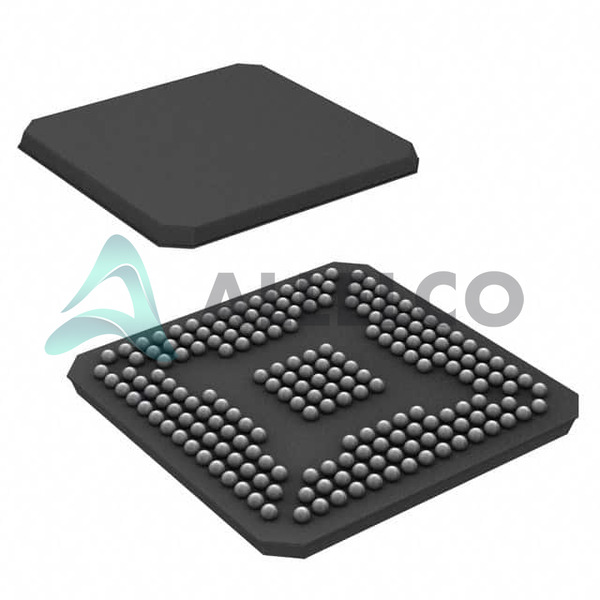

TMS320VC5501ZAV300 Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

TMS320VC5501ZAV300 - Texas Instruments

Manufacturer Part Number
TMS320VC5501ZAV300
Manufacturer
Texas Instruments
Allelco Part Number
32D-TMS320VC5501ZAV300
ECAD Model
Parts Description
FIXED-POINT DIGITAL SIGNAL PROCE
Package
201-LFBGA
Data sheet
TMS320VC5501ZAV300.pdf
RoHs Status
ROHS3 Compliant
Our certification
In stock: 5380

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TMS320VC5501ZAV300 Tech Specifications
Texas Instruments - TMS320VC5501ZAV300 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMS320VC5501ZAV300

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - I/O 3.30V
Voltage - Core 1.26V
Type Fixed Point
Supplier Device Package 201-NFBGA (15x15)
Series TMS320C55x
Package / Case 201-LFBGA
Package Tray
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C (TC)
On-Chip RAM 48kB
Non-Volatile Memory ROM (32kB)
Mounting Type Surface Mount
Interface Host Interface, I²C, McBSP, UART
Clock Rate 300MHz
Base Product Number TMS320

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

TMS320VC5501ZAV300

Manufacturer

Texas Instruments

Introduction

The TMS320VC5501ZAV300 is a high-performance, low-power, fixed-point digital signal processor designed by Texas Instruments, belonging to the TMS320C55x DSP family. It is optimized for applications requiring efficient, high-speed numerical processing.

Product Features and Performance

Fixed Point DSP architecture

High clock rate of 300MHz enabling fast processing speeds

Includes 32kB of ROM for non-volatile memory storage

Features 48kB of On-Chip RAM for temporary data storage

Supports a variety of interfaces including Host Interface, I2C, McBSP, UART

Designed for efficient low-power operation with a core voltage of 1.26V

Operates across a wide temperature range: -40°C to 85°C

Product Advantages

High-speed processing capabilities suitable for demanding signal processing tasks

Low power consumption enhancing battery life in portable devices

Integrated memory options reduce external components

Diverse interfacing options enable flexible system integration

Robust operating temperature range ensures reliability in extreme conditions

Key Technical Parameters

Clock Rate: 300MHz

Non-Volatile Memory: 32kB ROM

On-Chip RAM: 48kB

Voltage I/O: 3.30V

Voltage Core: 1.26V

Operating Temperature: -40°C to 85°C

Package: 201-LFBGA

Quality and Safety Features

Manufactured by Texas Instruments, a leader in DSP technology ensuring high-quality and reliability

Designed to meet stringent industry standards for safety and performance

Compatibility

Flexible interfacing options (Host Interface, I2C, McBSP, UART) ensure compatibility with a wide range of peripherals and other devices

Application Areas

Suitable for a wide range of applications including audio processing, telecommunications, industrial control, and more.

Product Lifecycle

Status: Active

This product is currently active and not near discontinuation, with replacements or upgrades readily available.

Several Key Reasons to Choose This Product

High-performance DSP capabilities enable advanced digital signal processing tasks

Low power consumption makes it ideal for portable and battery-powered applications

Comprehensive interfacing options provide flexibility in system design

Operates reliably in a wide range of environmental conditions

Backed by Texas Instruments' reputation for quality and support

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TMS320VC5501ZAV300

Product Attribute TMS320VC5501ZAV300 TMS320VC549PGE-80 TMS320VC5502PGF200 TMS320VC5502GZZ300
Part Number TMS320VC5501ZAV300 TMS320VC549PGE-80 TMS320VC5502PGF200 TMS320VC5502GZZ300
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Type Fixed Point Fixed Point Fixed Point Fixed Point
Non-Volatile Memory ROM (32kB) ROM (32kB) ROM (32kB) ROM (32kB)
Voltage - Core 1.26V 2.50V 1.26V 1.26V
Package Tray Tube Tray Tube
Base Product Number TMS320 TMS320 TMS320 TMS320
Series TMS320C55x TMS320C54x TMS320C55x TMS320C55x
On-Chip RAM 48kB 64kB 80kB 80kB
Package / Case 201-LFBGA 144-LQFP 176-LQFP 201-LFBGA
Operating Temperature -40°C ~ 85°C (TC) -40°C ~ 100°C (TC) -40°C ~ 85°C (TC) -40°C ~ 85°C (TC)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - I/O 3.30V 3.30V 3.30V 3.30V
Supplier Device Package 201-NFBGA (15x15) 144-LQFP (20x20) 176-LQFP (24x24) 201-BGA MICROSTAR (15x15)
Clock Rate 300MHz 80MHz 200MHz 300MHz
Interface Host Interface, I²C, McBSP, UART BSP, Host Interface, Serial Port Host Interface, I²C, McBSP, UART Host Interface, I²C, McBSP, UART

TMS320VC5501ZAV300 Datasheet PDF
