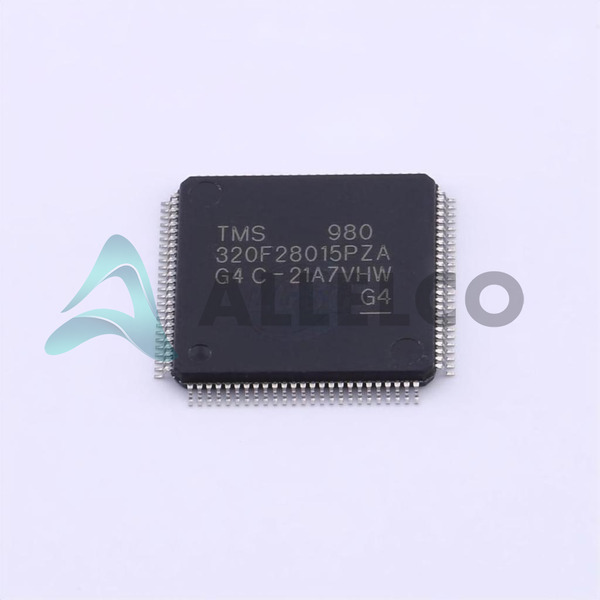

TMS320F28015PZA - Texas Instruments

Manufacturer Part Number

TMS320F28015PZA

Manufacturer

Texas Instruments

Introduction

32-Bit Fixed-Point Microcontroller for Real-Time Control Applications

Product Features and Performance

C28x Core Processor

32-Bit Processing for High Precision

60MHz Operating Speed

I2C, SCI, SPI, UART/USART Connectivity Options

On-Chip Peripherals Include POR, PWM, WDT

35 Programmable I/O Ports

Internal Oscillator for Clock Generation

32KB Flash Memory

6KB RAM

16-Channel 12-Bit Analog-to-Digital Converter

Product Advantages

Optimized for Control Applications

High Performance in a Small Package

Robust Peripheral Set for Versatile Use

Automotive Grade Quality

AEC-Q100 Qualified for Automotive Applications

Key Technical Parameters

Core Size: 32-Bit Single-Core

Speed: 60MHz

Program Memory Size: 32KB (16K x 16)

RAM Size: 6K x 16

Voltage Supply Range: 1.71V to 1.89V

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Automotive Grade Compliance

Extended Temperature Range Support

Qualification According to AEC-Q100 Standards

Compatibility

Compatible with Various Serial Communication Protocols

Support for Multiple I/O Configurations

100-LQFP Surface Mount Package for PCB Integration

Application Areas

Automotive Electronics

Industrial Control Systems

Motor Control

Power Conversion

Robotics

Product Lifecycle

Active Product Status

Regular Updates and Support Expected

No Near-Term Discontinuation

Replacement or Upgrades Available Through Texas Instruments

Several Key Reasons to Choose This Product

High-Performance Real-Time Control Capabilities

Broad Range of Connectivity and Interface Options

Reliable Functionality in Automotive and Industrial Temperatures

Sufficient Onboard Memory for Complex Applications

Supported by Texas Instruments' Extensive Technical Resources
