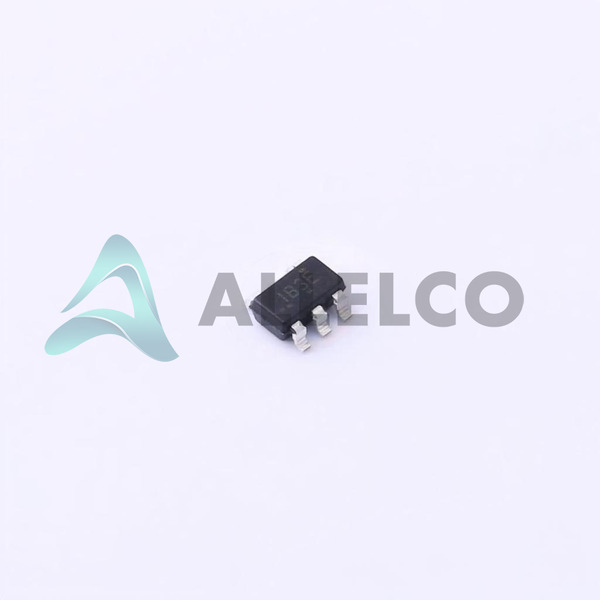

TLV70328DBVR - Texas Instruments

Manufacturer Part Number

TLV70328DBVR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for power management

Provides a regulated DC voltage output from an unregulated DC input

Product Features and Performance

Fixed output voltage of 2.8V

Output current capacity of 300mA

Wide input voltage range up to 5.5V

High power supply rejection ratio (PSRR) of 68dB at 1kHz

Over-current protection

Current limiting control feature

Low voltage dropout of 0.375V at 300mA output

Single-channel voltage regulator

Product Advantages

Compact SOT-23-5 package

Suitable for space-constrained applications

Reliable operation over wide temperature range (-40°C to 125°C)

Low quiescent current of 55μA

RoHS3 compliant

Key Technical Parameters

Output Voltage: 2.8V

Output Current: 300mA

Input Voltage Range: Up to 5.5V

PSRR: 68dB (1kHz)

Voltage Dropout: 0.375V @ 300mA

Quiescent Current: 55μA

Supply Current (Max): 370μA

Quality and Safety Features

Over-current protection

RoHS3 compliant

Compatibility

Surface mount package (SOT-23-5)

Suitable for a variety of electronic devices and applications

Application Areas

Portable electronics

Wireless communications

Industrial automation

Consumer electronics

Product Lifecycle

Currently available

No information on discontinuation or replacement

Several Key Reasons to Choose This Product

Compact and space-saving package

Wide operating temperature range

Reliable over-current protection

Low quiescent current for power-efficient operation

Suitable for a wide range of electronic applications
