Manufacturer Part Number

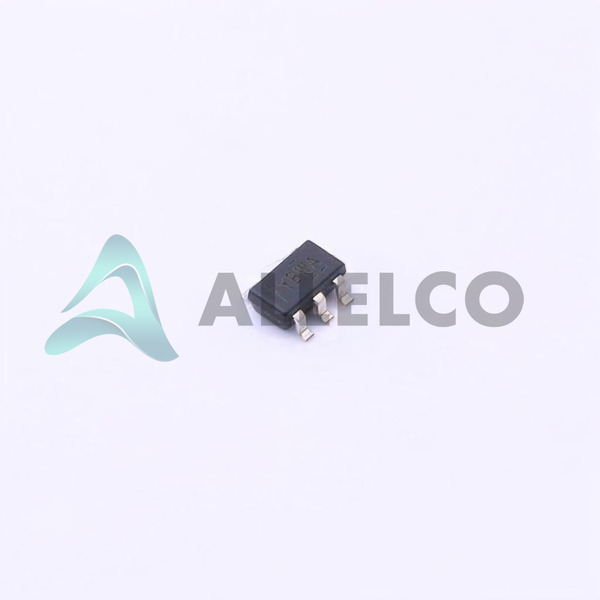

TLV70133DBVT
Manufacturer
Texas Instruments
Introduction
The TLV70133DBVT is a low-dropout linear regulator from Texas Instruments designed for power-sensitive applications.
Product Features and Performance
Single Positive Output Configuration
Fixed Output Voltage of 3.3V
Maximum Input Voltage of 24V
Low Dropout Voltage of 0.4V at 50mA
Output Current up to 150mA
Low Quiescent Current of 4.5 µA
Maximum Supply Current of 5.5 µA
Excellent PSRR of 60dB at 100kHz
Reverse Polarity and Over Current Protection
Operating Temperature Range from -40°C to 125°C
Surface Mount Packaging in SOT-23-5
Product Advantages
High efficiency due to low dropout voltage
Suitable for battery-operated devices due to low quiescent current
Reliable performance under variable temperature conditions
Key Technical Parameters
Voltage Input (Max): 24V
Voltage Output (Min/Fixed): 3.3V
Voltage Dropout (Max): 0.4V @ 50mA
Current Output: 150mA
Current Quiescent (Iq): 4.5 µA
PSRR: 60dB (100kHz)
Quality and Safety Features
Protection against overcurrent situations
Reverse polarity protection for enhanced safety
Compatibility
Compatible with various applications requiring a 3.3V fixed output voltage
Application Areas
IoT devices
Wearable electronics
Portable medical devices
Battery-operated devices
Product Lifecycle
Status: Last Time Buy
Availability of replacements or upgrades should be checked with Texas Instruments for future applications
Several Key Reasons to Choose This Product
High reliability with built-in protection features
Ideal for portable and power-sensitive applications due to low quiescent current and dropout
Wide input voltage range accommodating various power sources
Robust operation in diverse temperature environments
Compact package suitable for space-constrained applications
