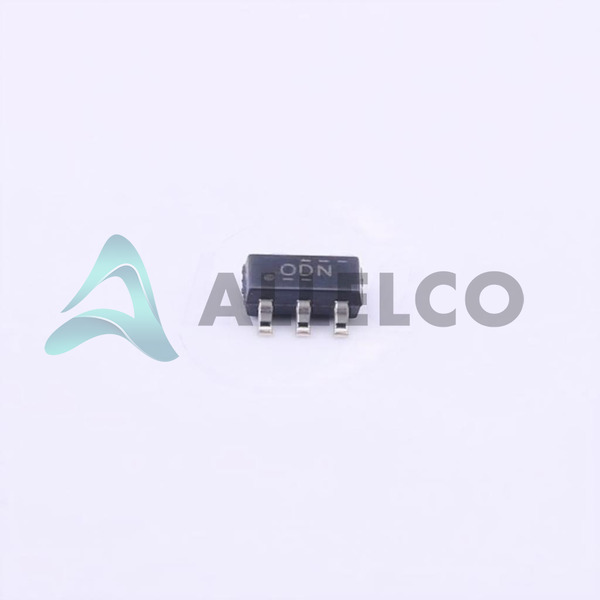

Manufacturer Part Number
TLV70033DDCR
Manufacturer
Texas Instruments
Introduction
Low Dropout Regulator for Various Electronics
Product Features and Performance
Output Configuration: Positive
Fixed Output Type
Single Voltage Regulator
Input Voltage up to 5.5V
Fixed Output Voltage at 3.3V
Maximum Voltage Dropout: 0.25V @ 200mA
Output Current Capability: 200mA
Low Quiescent Current: 55 µA
Supply Current: Max 270 µA
PSRR: 68dB at 1kHz
Enables precise control with Enable Feature
Product Advantages
High PSRR for Noise Sensitive Applications
Low Dropout for Efficient Operation
Low Quiescent Current for Power Saving
Built-in Protection Features for Device Safety
Wide Operating Temperature Range
Key Technical Parameters
Voltage - Output (Min/Fixed): 3.3V
Current - Output: 200mA
Current - Quiescent (Iq): 55 µA
PSRR: 68dB (1kHz)
Quality and Safety Features
Over Current Protection
Over Temperature Protection
Reverse Polarity Protection
Under Voltage Lockout (UVLO)
Compatibility
Compatible with Surface Mount Technology
Mounting Type: Surface Mount
Package / Case: SOT-23-5 Thin, TSOT-23-5
Application Areas
Consumer Electronics
Networking Equipment
Portable Devices
Industrial Controls
Product Lifecycle
Active Status
Not Nearing Discontinuation
Several Key Reasons to Choose This Product
High Stability with Excellent PSRR
Energy-efficient Low Quiescent Current
Integrated Protection Mechanisms for Reliability
Broad Operating Temperature Suited for Various Environments
Compact SOT-23-5 Thin Profile for Space-Sensitive Applications
