HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTLV70030DDCT

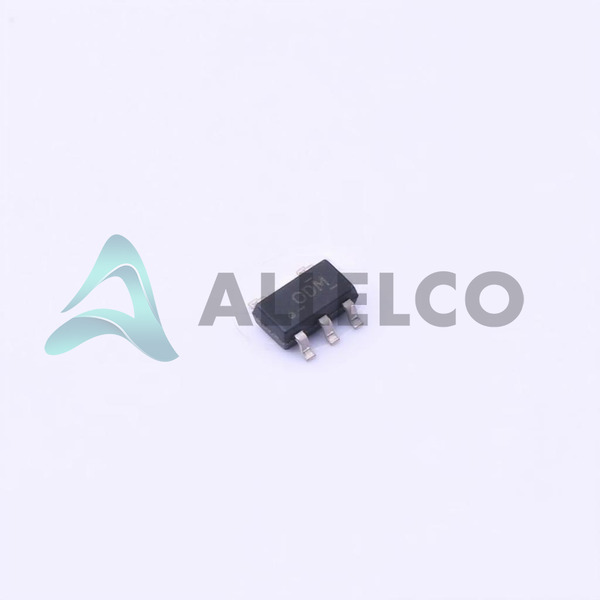

TLV70030DDCT Image
TLV70030DDCT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TLV70030DDCT - Texas Instruments

Manufacturer Part Number
TLV70030DDCT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TLV70030DDCT
ECAD Model
Parts Description
IC REG LINEAR 3V 200MA SOT23-5
Detailed Description
Package
SOT-23-5 Thin, TSOT-23-5
Data sheet
TLV700xx Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 54080

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TLV70030DDCT Tech Specifications
Texas Instruments - TLV70030DDCT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TLV70030DDCT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.25V @ 200mA
Voltage - Output (Min/Fixed) 3V
Voltage - Output (Max) -
Voltage - Input (Max) 5.5V
Supplier Device Package SOT-23-THIN
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case SOT-23-5 Thin, TSOT-23-5
Package Tape & Reel (TR)
PSRR 68dB (1kHz)
Product Attribute Attribute Value
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 270 µA
Current - Quiescent (Iq) 55 µA
Current - Output 200mA
Control Features Enable
Base Product Number TLV70030

Parts Introduction

Manufacturer Part Number

TLV70030DDCT

Manufacturer

Texas Instruments

Introduction

Low Dropout Regulator (LDO)

Product Features and Performance

Output Configuration: Positive

Single Regulator Design

Fixed Output Voltage: 3V

Low Dropout Voltage: 0.25V @ 200mA

Current Output Capability: 200mA

Low Quiescent Current: 55 µA

High PSRR: 68dB @ 1kHz

Enable Pin for On/Off Control

Product Advantages

High Efficiency for Low Voltage Applications

Compact SOT-23-5 Thin Package

Integrated Protection Features for Device Safety

Key Technical Parameters

Max Input Voltage: 5.5V

Output Voltage Range: 3.0V Fixed

Max Dropout Voltage: 0.25V

Output Current: 200mA

Quiescent Current (Iq): 55 µA

Supply Current (Max): 270 µA

Power Supply Rejection Ratio (PSRR)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Compatible with a Variety of Microcontrollers and Analog ICs

Application Areas

Consumer Electronics

Portable Devices

Power Management Solutions

Product Lifecycle

Status: Active

Not Nearing Discontinuation

Replacements/Upgrades Available

Several Key Reasons to Choose This Product

Low Dropout Voltage Ideal for Battery-Powered Devices

Energy Efficient for Extended Battery Life

Small Form Factor for Space-Constrained Applications

High PSRR Minimizes Voltage Fluctuations

Robust Safety Features Ensuring Reliability of End Product

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TLV70030DDCT

Product Attribute TLV70030DDCT TLV70030DSER TLV70028QDDCRQ1 TLV70032DDCR
Part Number TLV70030DDCT TLV70030DSER TLV70028QDDCRQ1 TLV70032DDCR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Output (Min/Fixed) 3V 3V 2.8V 3.2V
Series - - Automotive, AEC-Q100 -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package SOT-23-THIN 6-WSON (1.5x1.5) SOT-23-THIN SOT-23-THIN
Voltage - Output (Max) - - - -
Output Configuration Positive Positive Positive Positive
Current - Supply (Max) 270 µA 270 µA 270 µA 270 µA
PSRR 68dB (1kHz) 68dB (1kHz) 68dB (1kHz) 68dB (1kHz)
Current - Quiescent (Iq) 55 µA 55 µA 55 µA 55 µA
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Base Product Number TLV70030 TLV70030 TLV70028 TLV70032
Voltage - Input (Max) 5.5V 5.5V 5.5V 5.5V
Control Features Enable Enable Enable Enable
Current - Output 200mA 200mA 200mA 200mA
Voltage Dropout (Max) 0.25V @ 200mA 0.25V @ 200mA 0.25V @ 200mA 0.25V @ 200mA
Number of Regulators 1 1 1 1
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case SOT-23-5 Thin, TSOT-23-5 6-WFDFN SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TA) -40°C ~ 125°C (TJ)
Output Type Fixed Fixed Fixed Fixed
