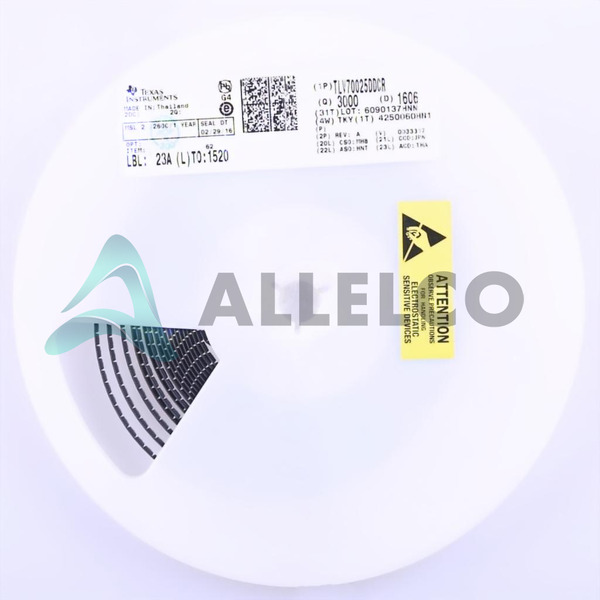

TLV70025DDCR - Texas Instruments

Manufacturer Part Number

TLV70025DDCR

Manufacturer

Texas Instruments

Introduction

Low Drop Out Regulator for Power Management

Product Features and Performance

Positive Fixed Output

Single Regulator Design

Low Voltage Dropout of 0.25V at 200mA

High PSRR of 68dB at 1kHz

Low Quiescent Current of 55 µA

Output Current Capability of 200mA

Control Feature with Enable Function

Surface Mount SOT-23-5 Thin Package

Operational Temperature Range from -40°C to 125°C

Product Advantages

Efficient Power Conversion

Minimal Power Loss

High Ripple Rejection Ratio

Low Standby Power Consumption

Built-in Protection Features

Key Technical Parameters

Input Voltage Max: 5.5V

Output Voltage: 2.5V Fixed

Current - Supply Max: 270 µA

PSRR: 68dB at 1kHz

Mounting Type: Surface Mount

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Compatible with Surface Mount Technology (SOT-23-5 Thin Package)

Application Areas

Electronic Devices Requiring Stable Power Supply

Product Lifecycle

Status: Active

Not Nearing Discontinuation

Replacements or Upgrades Available

Several Key Reasons to Choose This Product

High Degree of Efficiency for Battery-Powered Devices

Robust Design with Multiple Protection Features

Ideal for Noise-Sensitive Applications due to High PSRR

Small Form Factor Suitable for Compact Electronic Assemblies

Long Operational Temperature Range Adapting to Harsh Environments
