HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTLV70015DSET

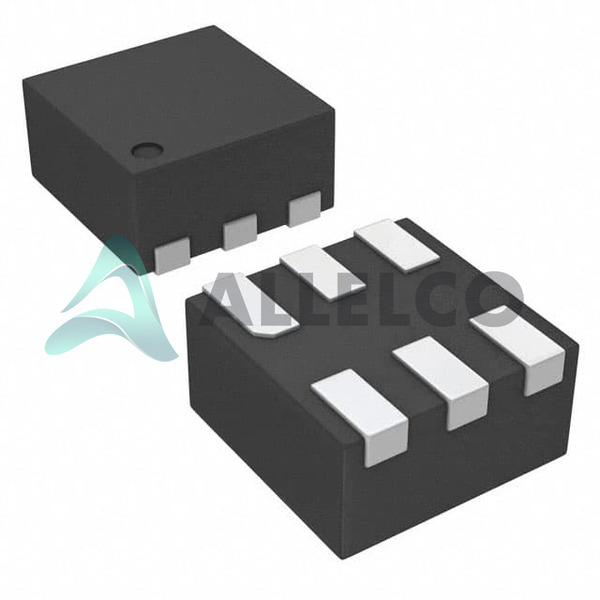

TLV70015DSET Image
TLV70015DSET Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TLV70015DSET - Texas Instruments

Manufacturer Part Number
TLV70015DSET
Manufacturer
Texas Instruments
Allelco Part Number
32D-TLV70015DSET
ECAD Model
Parts Description
IC REG LINEAR 1.5V 200MA 6WSON
Detailed Description
Package
6-WFDFN
Data sheet
TLV700xx Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 64200

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TLV70015DSET Tech Specifications
Texas Instruments - TLV70015DSET technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TLV70015DSET

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.25V @ 200mA
Voltage - Output (Min/Fixed) 1.5V
Voltage - Output (Max) -
Voltage - Input (Max) 5.5V
Supplier Device Package 6-WSON (1.5x1.5)
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case 6-WFDFN
Package Tape & Reel (TR)
PSRR 68dB (1kHz)
Product Attribute Attribute Value
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 270 µA
Current - Quiescent (Iq) 55 µA
Current - Output 200mA
Control Features Enable
Base Product Number TLV70015

Parts Introduction

Manufacturer Part Number

TLV70015DSET

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) for Power Management

Designed for Low-Power Applications

Product Features and Performance

Fixed 1.5V Output Voltage

Output Current: 200mA

Input Voltage Range: Up to 5.5V

High Power Supply Rejection Ratio (PSRR): 68dB at 1kHz

Low Quiescent Current: 55μA

Small Footprint: 6-WSON (1.5x1.5) Package

Product Advantages

Efficient Linear Voltage Regulation

Compact and Space-Saving Design

Robust Protection Features

Suitable for Low-Power Applications

Key Technical Parameters

Operating Temperature Range: -40°C to 125°C

Voltage Dropout: 0.25V at 200mA

Number of Regulators: 1

Control Feature: Enable

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Surface Mount Mounting

Tape & Reel Packaging

Application Areas

Portable Electronics

Battery-Powered Devices

Industrial Equipment

Telecommunications Equipment

Product Lifecycle

Current Production Model

Availability of Replacement or Upgrade Models

Key Reasons to Choose This Product

Reliable and Efficient Linear Voltage Regulation

Wide Operating Temperature Range

Comprehensive Protection Features

Compact and Space-Saving Design

Suitable for Low-Power Applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TLV70015DSET

Product Attribute TLV70015DSET TLV70022DDCR TLV70015DDCT TLV70018DDCR
Part Number TLV70015DSET TLV70022DDCR TLV70015DDCT TLV70018DDCR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Current - Supply (Max) 270 µA 270 µA 270 µA 270 µA
Voltage - Input (Max) 5.5V 5.5V 5.5V 5.5V
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ)
Package / Case 6-WFDFN SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5
Voltage - Output (Max) - - - -
Current - Quiescent (Iq) 55 µA 55 µA 55 µA 55 µA
Series - - - -
Voltage - Output (Min/Fixed) 1.5V 2.2V 1.5V 1.8V
Current - Output 200mA 200mA 200mA 200mA
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Control Features Enable Enable Enable Enable
Supplier Device Package 6-WSON (1.5x1.5) SOT-23-THIN SOT-23-THIN SOT-23-THIN
Number of Regulators 1 1 1 1
Output Configuration Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed
Base Product Number TLV70015 TLV70022 TLV70015 TLV70018
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
PSRR 68dB (1kHz) 68dB (1kHz) 68dB (1kHz) 68dB (1kHz)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage Dropout (Max) 0.25V @ 200mA 0.25V @ 200mA 0.25V @ 200mA 0.25V @ 200mA

TLV70015DSET Datasheet PDF

Download TLV70015DSET pdf datasheets and Texas Instruments documentation for TLV70015DSET - Texas Instruments.

HTML Datasheet
TLV700xx Datasheet.pdf
