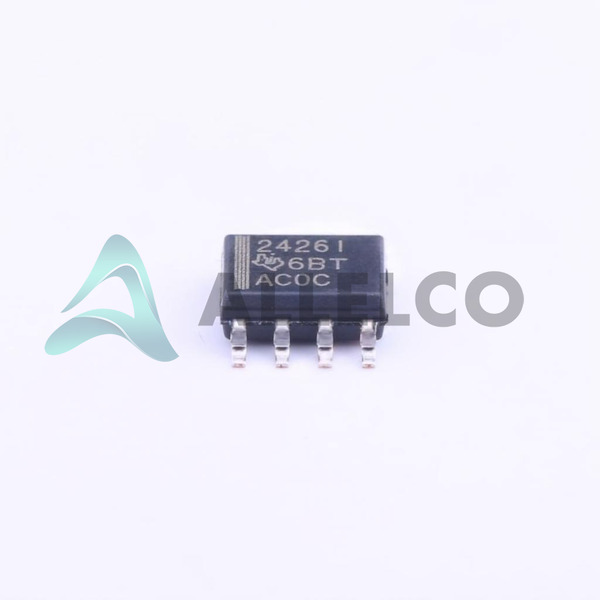

TLE2426IDR - Texas Instruments

Manufacturer Part Number

TLE2426IDR

Manufacturer

Texas Instruments

Introduction

The TLE2426IDR is a ground reference voltage reference IC designed for power management applications.

Product Features and Performance

Adjustable output voltage ranging from 2V to 20V

Outputs current up to 20 mA

Tolerance of ±1%

Temperature coefficient of 35ppm/°C typical

Voltage input range from 4V to 40V

Low supply current of 400µA

Noise at 10Hz to 10kHz is 120µVrms

Product Advantages

High flexibility with adjustable output voltage

Precision output with low tolerance and stable temperature coefficient

Suitable for wide input voltage range

Low noise performance enhances system stability

Key Technical Parameters

Output Voltage (Min/Fixed): 2V

Output Voltage (Max): 20V

Current Output: 20 mA

Tolerance: ±1%

Temperature Coefficient: 35ppm/°C typical

Voltage Input: 4V ~ 40V

Current Supply: 400µA

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Offers stable performance across a wide range of temperatures and input voltages

Compatibility

Compatible within systems requiring adjustable voltage and current in a compact 8-SOIC package

Application Areas

Power management solutions in industrial, automotive, and consumer electronics sectors

Product Lifecycle

Product status labeled "Last Time Buy" indicates nearing discontinuation

Potential need to look for replacements or upgrades shortly

Several Key Reasons to Choose This Product

Highly versatile adjustable voltage for custom applications

Extremely low tolerance and stable performance for precision applications

Low operational noise beneficial for sensitive electronics environments

Wide operating temperature range suitable for extreme conditions

Last Time Buy status offers the opportunity to stock up before discontinuation
