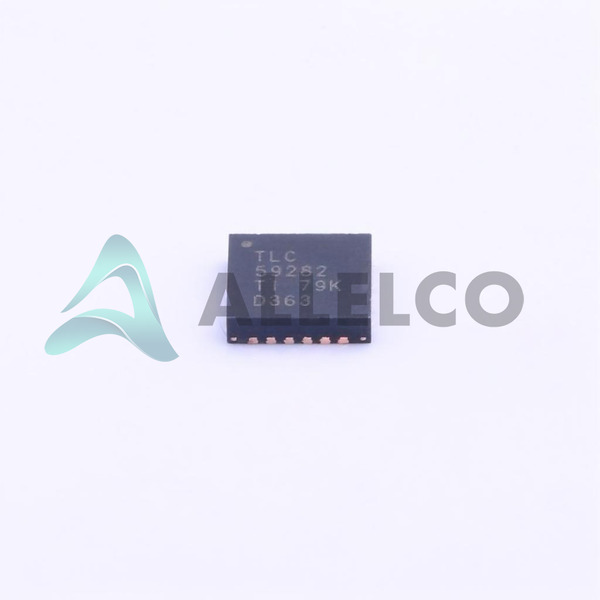

TLC59282RGET - Texas Instruments

Manufacturer Part Number

TLC59282RGET

Manufacturer

Texas Instruments

Introduction

Power Management Integrated Circuit LED Driver

Product Features and Performance

16-channel LED driver

Shift register topology

Linear regulation

Integrated switches

Supports minimum supply voltage of 3V

Supports maximum supply voltage of 5.5V

Output voltage up to 17V

45mA output current per channel

High-frequency operation at 35MHz

Product Advantages

High-integration with 16 outputs

Support for a wide range of input voltages

High output voltage capability

Precision current control for uniform brightness

Key Technical Parameters

Number of Outputs: 16

Voltage - Supply (Min): 3V

Voltage - Supply (Max): 5.5V

Voltage - Output: 17V

Current - Output / Channel: 45mA

Frequency: 35MHz

Quality and Safety Features

Built to operate between -40°C ~ 85°C ensuring reliability in extreme conditions

Surface mount technology for robust mechanical performance

Compatibility

Compatible with surface mount technology

Application Areas

Designed for use in LED lighting applications

Product Lifecycle

Currently active product status

Not reported as nearing discontinuation

Replacement or upgrade availability not specified

Several Key Reasons to Choose This Product

Efficient LED driving capabilities

High channel count for extensive LED arrays

Versatile power supply compatibility increases design flexibility

High-speed performance supports dynamic lighting effects

Proven reliability from Texas Instruments' manufacturing standards
