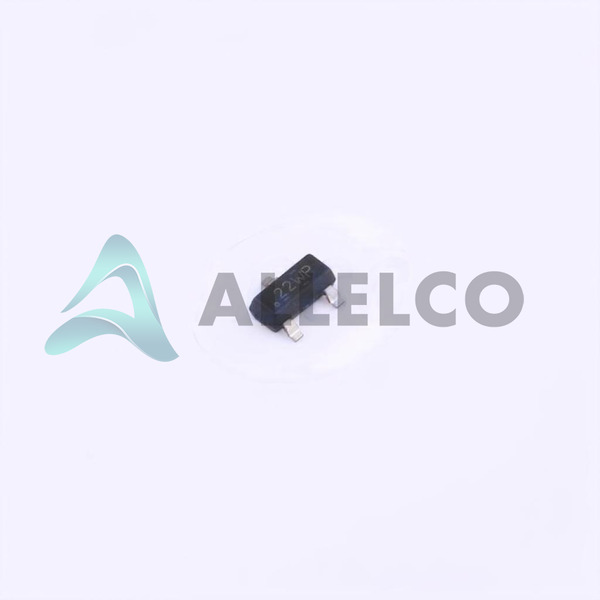

TL432LIBQDBZRQ1 - Texas Instruments

Name: Texas Instruments TL432LIBQDBZRQ1
Brand: Texas Instruments
SKU: TL432LIBQDBZRQ1
Availability: InStock
Rating: 5 (7 reviews)

Manufacturer Part Number: TL432LIBQDBZRQ1

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TL432LIBQDBZRQ1

ECAD Model

Parts Description: IC VREF SHUNT ADJ 0.5% SOT23-3

Package: TO-236-3, SC-59, SOT-23-3

Data sheet: ~~TL432LIBQDBZRQ1.pdf~~

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 179060

EXPRESS OPTION

Payment method

Our certification

Specifications

TL432LIBQDBZRQ1 Tech Specifications
Texas Instruments - TL432LIBQDBZRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TL432LIBQDBZRQ1

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	2.495V
Voltage - Output (Max)	36 V
Voltage - Input	-
Tolerance	±0.5%
Temperature Coefficient	-
Supplier Device Package	SOT-23-3
Series	Automotive, AEC-Q100
Reference Type	Shunt
Package / Case	TO-236-3, SC-59, SOT-23-3

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Output Type	Adjustable
Operating Temperature	-40°C ~ 125°C (TA)
Noise - 10Hz to 10kHz	-
Noise - 0.1Hz to 10Hz	-
Mounting Type	Surface Mount
Current - Supply	-
Current - Output	15 mA
Current - Cathode	600 µA
Base Product Number	TL432

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TL432LIBQDBZRQ1

Manufacturer

Texas Instruments

Introduction

Automotive Grade Adjustable Shunt Voltage Reference

Product Features and Performance

Adjustable Voltage - Output (Min/Fixed) 2.495V

Maximum Voltage - Output 36V

Maximum Current - Output 15mA

Tolerance ±0.5%

Automotive Grade Component

Operational Temperature Range -40°C to 125°C

Product Advantages

High Stability Over Temperature

Packaged for High-volume Manufacturing with Tape & Reel

Key Technical Parameters

Output Type Adjustable

Tolerance ±0.5%

Current - Cathode 600 µA

Operating Temperature -40°C to 125°C

Quality and Safety Features

AEC-Q100 Qualified for Automotive Reliability

Robust Design for Harsh Environments

Compatibility

Surface Mount Device Compatible with SOT-23-3 Footprint

Application Areas

Automotive Electronics

Power Management Circuits

Battery Chargers

Portable Devices

Regulated Power Supplies

Product Lifecycle

Active Status

Not Nearing Discontinuation

Several Key Reasons to Choose This Product

Precision Voltage Reference with Low Tolerance

High Output Current Capability - 15mA

Extended Operating Temperature Suitable for Automotive Applications

Small Form Factor Surface Mount Package for Device Miniaturization

Meets Strict Automotive Qualification Standards AEC-Q100

Available in High-volume Quantities with Tape & Reel Packaging

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TL432LIBQDBZRQ1

Product Attribute
Part Number	TL432LIBQDBZRQ1	TL432QDBZRG4	TL432LIBIDBZR	TL432LIAQDBZR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Voltage - Input	-	-	-	-
Current - Supply	-	-	-	-
Current - Cathode	600 µA	1 mA	1 mA	1 mA
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)	-	-40°C ~ 85°C (TA)	-40°C ~ 125°C (TA)
Voltage - Output (Max)	36 V	36 V	36 V	36 V
Reference Type	Shunt	Shunt	Shunt	Shunt
Current - Output	15 mA	100 mA	15 mA	15 mA
Package	Tape & Reel (TR)	Bulk	Tape & Reel (TR)	Tape & Reel (TR)
Package / Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3
Noise - 10Hz to 10kHz	-	-	-	-
Series	Automotive, AEC-Q100	-	-	-
Temperature Coefficient	-	-	-	-
Noise - 0.1Hz to 10Hz	-	-	-	-
Tolerance	±0.5%	±2.2%	±0.5%	±1%
Supplier Device Package	SOT-23-3	SOT-23-3	SOT-23-3	SOT-23-3
Output Type	Adjustable	Adjustable	Adjustable	Adjustable
Voltage - Output (Min/Fixed)	2.495V	2.495V	2.495V	2.495V
Base Product Number	TL432	TL432	TL432	TL432
