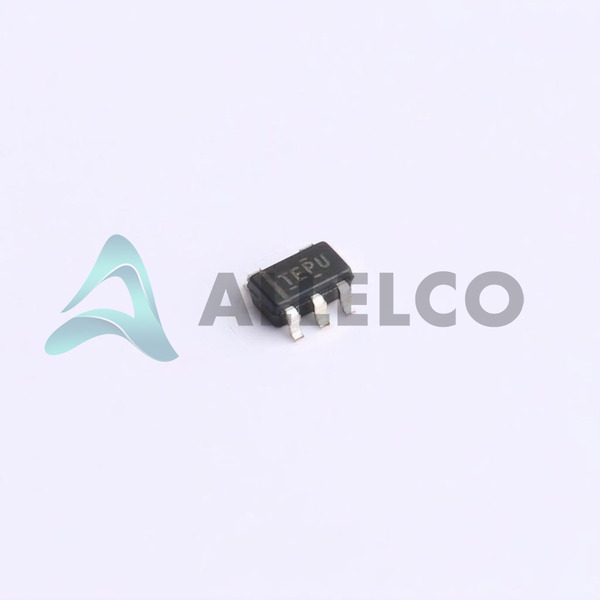

TL331MDBVTEP - Texas Instruments

Manufacturer Part Number

TL331MDBVTEP

Manufacturer

Texas Instruments

Introduction

The TL331MDBVTEP is part of Texas Instruments' family of Linear Comparators, specifically designed for general-purpose applications.

Product Features and Performance

General Purpose comparator

Single element configuration

Provides Open-Collector, Rail-to-Rail output

Operates across a wide voltage range: 2V to 36V for single supply or ±1V to ±18V for dual supplies

Low input offset voltage: Maximum 5mV

Very low input bias current: Maximum 0.25µA at 5V

Quiescent current maximum: 700µA

Operates in a wide temperature range: -55°C to 125°C

Encapsulated in a small SC-74A, SOT-753 package suitable for surface mount

Product Advantages

Versatile power supply compatibility

Minimal power consumption due to low quiescent current

High-temperature operational range makes it suitable for rugged environments

Compact size facilitates integration into space-constrained applications

Key Technical Parameters

Voltage Supply, Single/Dual (±): 2V ~ 36V, ±1V ~ 18V

Voltage Input Offset (Max): 5mV

Current Input Bias (Max): 0.25µA @ 5V

Quiescent Current (Max): 700µA

Operating Temperature: -55°C ~ 125°C

Quality and Safety Features

Designed and manufactured by Texas Instruments, ensuring high reliability and performance consistency.

Compatibility

Its open-collector, rail-to-rail output, and wide supply voltage range ensure compatibility with a broad array of circuits and applications.

Application Areas

Industrial control systems

Automotive systems

Data systems

Power management

Signal processing

Consumer electronics

Product Lifecycle

Active status, indicating ongoing manufacturing and support without immediate danger of discontinuation. Future replacements or upgrades will be announced in advance.

Several Key Reasons to Choose This Product

Texas Instruments' reputation for quality and reliability in semiconductor manufacturing

The wide operating temperature range suits a variety of harsh environments

Low input bias and offset voltage improve accuracy in signal processing applications

The flexibility of power supply voltage facilitates easy integration into existing designs

Compact and efficient design suited for high-density PCB layouts
