THS7002IPWP - Texas Instruments

Manufacturer Part Number

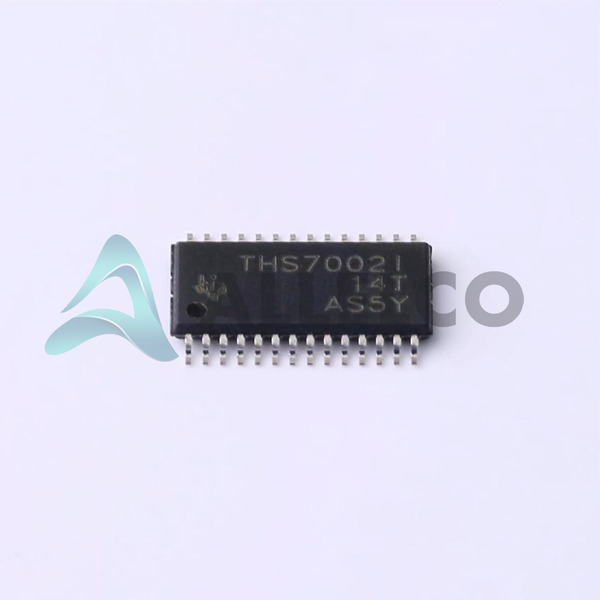

THS7002IPWP

Manufacturer

Texas Instruments

Introduction

The THS7002IPWP is a high-performance, low-power, dual operational amplifier (op-amp) designed for instrumentation and other precision analog applications.

Product Features and Performance

Dual operational amplifier

Wide gain bandwidth of 70 MHz

High slew rate of 85V/s

Low input offset voltage of 1 mV

Programmable gain amplifier

Wide supply voltage range of 9V to 32V

Low supply current of 5 mA per amplifier

High output current of 95 mA per channel

Low input bias current of 2.5 μA

-3dB bandwidth of 100 MHz

Product Advantages

Excellent performance for instrumentation and precision analog applications

Wide supply voltage range and low power consumption

Small 28-HTSSOP package

Key Technical Parameters

Manufacturer Part Number: THS7002IPWP

Package: 28-HTSSOP

Supply Voltage Range: 9V to 32V

Gain Bandwidth Product: 70 MHz

Slew Rate: 85V/s

Input Offset Voltage: 1 mV

Amplifier Type: Programmable Gain

Output Current: 95 mA per channel

Input Bias Current: 2.5 μA

-3dB Bandwidth: 100 MHz

Quality and Safety Features

RoHS3 compliant

Qualified for industrial and automotive applications

Compatibility

Suitable for a wide range of instrumentation, precision analog, and other applications requiring high-performance op-amps

Application Areas

Instrumentation amplifiers

Active filters

Data acquisition systems

Medical equipment

Industrial control systems

Product Lifecycle

The THS7002IPWP is an active product and is not nearing discontinuation.

Replacement or upgrade options are available from Texas Instruments.

Key Reasons to Choose This Product

Excellent performance characteristics, including wide gain bandwidth, high slew rate, and low input offset voltage

Wide supply voltage range and low power consumption

Small, space-saving package

Suitable for a wide range of precision analog and instrumentation applications

Backed by the reliability and support of Texas Instruments
