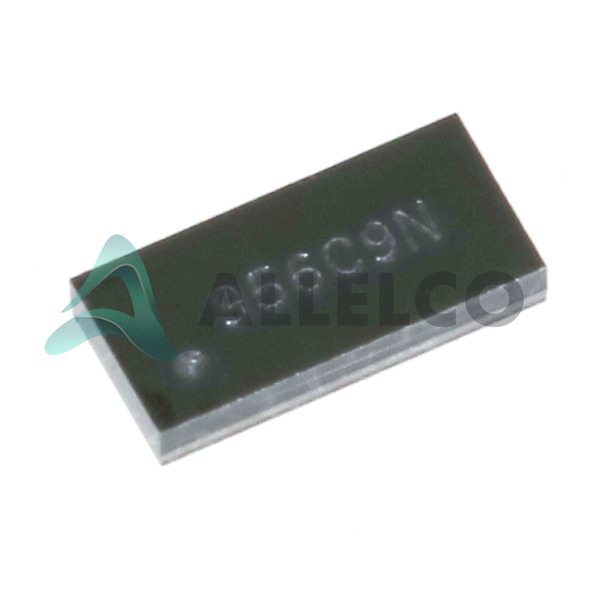

SN74LVC3G34YZPR - Texas Instruments

Manufacturer Part Number

SN74LVC3G34YZPR

Manufacturer

Texas Instruments

Introduction

High-performance, triple buffer gate integrated circuit for digital signal processing

Product Features and Performance

Triple buffer, non-inverting logic gates

Each gate operates independently

Output drive capability of 32mA for both high and low states

Flexible voltage supply range from 1.65V to 5.5V

Low power consumption design for energy efficiency

High noise immunity

Product Advantages

Interoperable with 5V logic signals without a need for a level shifter

Enhanced signal integrity due to balanced output drive

Suitable for use across a wide range of applications

Robust performance in extreme temperature conditions

Key Technical Parameters

Number of Elements: 3

Number of Bits per Element: 1

Output Type: Push-Pull

Current Output High, Low: 32mA, 32mA

Voltage Supply Range: 1.65V to 5.5V

Operating Temperature Range: -40°C to 85°C (TA)

Quality and Safety Features

Designed for minimal propagation delay

Meets stringent Texas Instruments quality standards

Lead-free and RoHS compliant

Over-temperature protection mechanism

Compatibility

Compatible with 5V TTL and CMOS logic families

Use with various microcontrollers and digital logic systems

Mountable on surface mount technology (SMT) equipped PCBs

Application Areas

Communication systems

Data processing equipment

Consumer electronics

Embedded systems and microcontrollers

Computing and networking hardware

Product Lifecycle

Product Status: Active

Not nearing discontinuation

Replacements or upgrades available as part of the 74LVC series

Several Key Reasons to Choose This Product

Offers excellent signal buffering for high-speed digital systems

Supports a wide voltage range for flexible design applications

Low power consumption helps to extend battery life in portable devices

The small package size makes it ideal for high-density circuit boards

Provides reliable operation in a broad range of environmental conditions

Texas Instruments is a reputable manufacturer known for quality and reliability
