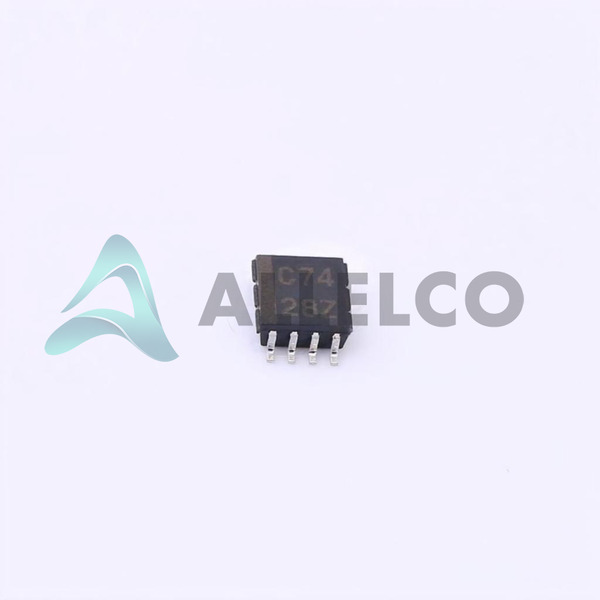

SN74LVC2G74DCT3 - Texas Instruments

Manufacturer Part Number

SN74LVC2G74DCT3

Manufacturer

Texas Instruments

Introduction

Dual D-type Flip-Flop with Set and Reset

Product Features and Performance

Set/reset functionality

1-bit dual D-type flip-flop

Positive edge-triggered

Complementary outputs

Wide supply voltage range of 1.65V to 5.5V

High operating frequency up to 140MHz

Low power consumption with quiescent current of 10μA

Fast propagation delay of 6.1ns at 5V, 50pF load

Product Advantages

Space-saving 8-LSSOP/8-MSOP package

Suitable for a wide range of applications

Robust performance across temperature range of -40°C to 125°C

Compliance with RoHS3 requirements

Key Technical Parameters

Supply Voltage: 1.65V to 5.5V

Quiescent Current: 10μA

Output Current (High/Low): 32mA/32mA

Propagation Delay: 6.1ns @ 5V, 50pF

Input Capacitance: 5pF

Number of Bits per Element: 1

Number of Elements: 1

Trigger Type: Positive Edge

Clock Frequency: 140MHz

Quality and Safety Features

RoHS3 compliant

Suitable for high-reliability applications

Compatibility

Widely compatible with various digital logic circuits and systems

Application Areas

Suitable for a wide range of applications such as:

- Digital control systems

- Timing and synchronization circuits

- Data storage and processing

Product Lifecycle

This product is an active and widely available component.

Replacements and upgrades may be available from Texas Instruments or other manufacturers.

Key Reasons to Choose This Product

Versatile dual D-type flip-flop with set/reset functionality

Wide supply voltage range and high operating frequency

Low power consumption and fast propagation delay

Compact surface-mount package suitable for space-constrained designs

Robust performance across temperature range and RoHS3 compliance

Widely compatible with various digital logic circuits and systems
