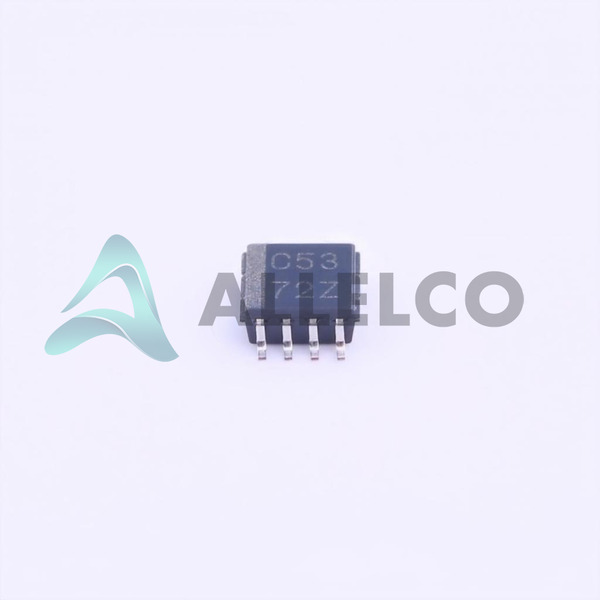

SN74LVC2G53DCTR - Texas Instruments

Manufacturer Part Number

SN74LVC2G53DCTR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) with two independent single-pole, double-throw (SPDT) analog switches

Designed for low-voltage, low-power applications

Product Features and Performance

300MHz -3dB bandwidth

Low on-state resistance (maximum of 13 ohms)

Low leakage current (maximum of 100nA in off-state)

Channel-to-channel resistance matching within 2 ohms

Fast switching times (maximum of 4.5ns turn-on, 8ns turn-off)

Low crosstalk (-58dB at 1MHz)

Operates from 1.65V to 5.5V single supply

Product Advantages

Compact 8-pin LSSOP/MSOP package

Suitable for low-power, portable applications

Wide operating voltage range

Excellent analog performance

Key Technical Parameters

Number of Circuits: 1

Multiplexer/Demultiplexer Circuit: 2:01

Switch Circuit: SPDT

Voltage Supply, Single (V+): 1.65V ~ 5.5V

Switch Time (Ton, Toff) (Max): 4.5ns, 8ns

Channel Capacitance (CS(off), CD(off)): 10pF

Crosstalk: -58dB @ 1MHz

Quality and Safety Features

RoHS3 compliant

Suitable for reflow soldering

Compatibility

Compatible with a wide range of low-voltage digital and analog circuits

Application Areas

Portable electronics

Test and measurement equipment

Industrial automation

Communications systems

Product Lifecycle

Current product, no discontinuation planned

Replacement or upgrades may become available in the future

Several Key Reasons to Choose This Product

Excellent analog performance with low on-resistance, fast switching, and low crosstalk

Wide operating voltage range for versatile applications

Small, space-saving package

Suitable for low-power, portable devices

RoHS3 compliance for environmentally-conscious design
