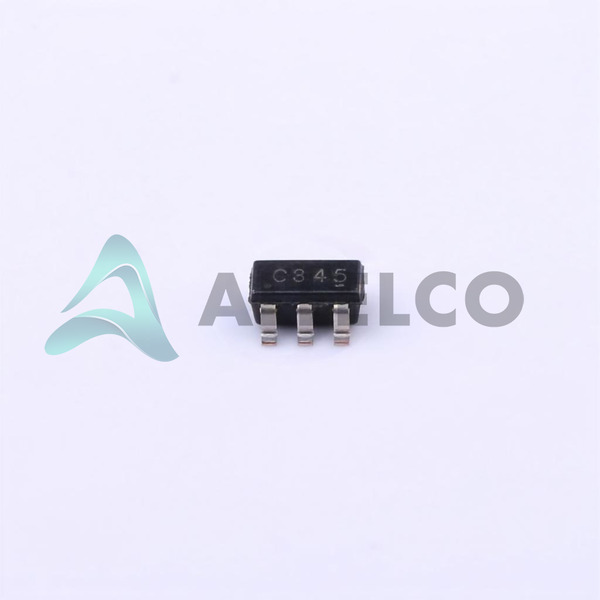

Manufacturer Part Number
SN74LVC2G34DBVR
Manufacturer
Texas Instruments
Introduction
A dual, non-inverting buffer designed to support a wide operating voltage range with high-drive output strength.
Product Features and Performance
Logic Buffers, Drivers, Receivers, Transceivers category
Two buffer gates in one package
Supports 1.65V to 5.5V supply voltage range
Operational temperature range from -40°C to 125°C
Surface Mount SOT-23-6 package for compact circuit design
Supports high-speed signal processing with push-pull outputs
Product Advantages
High output drive strength of 32mA at both high and low levels
Broad voltage range compatibility for use in mixed-voltage applications
Low power consumption suitable for battery-operated devices
Extended temperature range for industrial applications
Key Technical Parameters
Number of Elements: 2
Number of Bits per Element: 1
Current - Output High, Low: 32mA, 32mA
Voltage - Supply Range: 1.65V ~ 5.5V
Operating Temperature Range: -40°C ~ 125°C
Quality and Safety Features
Robust construction for longevity
Meet stringent industry standards for safety and reliability
Compatibility
Compatible with a broad range of microcontrollers and digital circuits
Conforms to standard SOT-23-6 footprint for PCB design compatibility
Application Areas
Computing
Telecommunication systems
Consumer electronics
Industrial control circuits
Portable devices
Product Lifecycle
Product Status: Active
Not nearing discontinuation, and replacements or upgrades are available
Several Key Reasons to Choose This Product
Flexible voltage supply range ensuring compatibility with various systems
Industry-proven Texas Instruments quality and reliability
SOT-23-6 package suitable for space-limited applications
High-temperature operational capability catering to industrial-grade requirements
High output drive currents enabling direct LED driving and other high-drive applications
Active product with long-term availability, reducing risks of system redesign
