SN74LVC245APW - Texas Instruments

Manufacturer Part Number

SN74LVC245APW

Manufacturer

Texas Instruments

Introduction

The SN74LVC245APW is a logic-level transceiver from the 74LVC series that features octal bus transceiver functionalities with 3-state outputs.

Product Features and Performance

Logic Type: Transceiver, Non-Inverting

Number of Elements: 1

Number of Bits per Element: 8

Output Type: 3-State

Current - Output High, Low: 24mA, 24mA

Supports 5V Tolerant Inputs

Latch-Up Performance Exceeds 250 mA Per JESD 17

Product Advantages

Operates From 1.65V to 3.6V

Low Power Consumption

High Drive Capabilities

Ensures Signal Integrity with 3-State Outputs

Key Technical Parameters

Voltage - Supply: 1.65V ~ 3.6V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

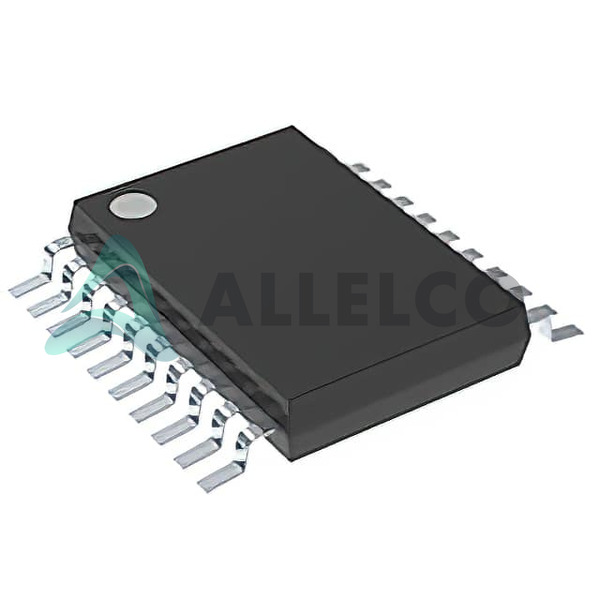

Package / Case: 20-TSSOP (0.173", 4.40mm Width)

Supplier Device Package: 20-TSSOP

Quality and Safety Features

Lead-Free and RoHS Compliant

Exceeds the Requirements of JEDEC Standard No. 78

Ensured by Texas Instruments' Reliability and Quality Standards

Compatibility

Suitable for Use in 5V and 3.3V Systems

Interface Between Different Voltage Levels

Application Areas

Data Communication

Signal Gating

Level Translation

Bus Management

Product Lifecycle

Status: Active

Not Near Discontinuation

Replacements or Upgrades Typically Available

Several Key Reasons to Choose This Product

Trusted Manufacturer with a Reputation for Reliability

Supports Bidirectional Signal Transmission

Applicable Across a Broad Range of Operating Voltages

Robust Operating Temperature Range Suitable for Industrial Environments

Scalable and Compatible with Existing and Future Logic Systems

Surface Mount Package for Compact PCB Designs
