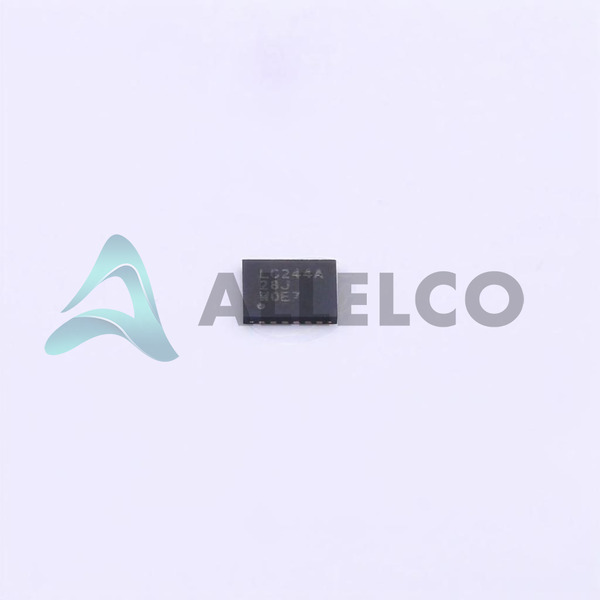

SN74LVC244ARWPR - Texas Instruments

Manufacturer Part Number

SN74LVC244ARWPR

Manufacturer

Texas Instruments

Introduction

The SN74LVC244ARWPR is a logic buffer and driver component, part of the 74LVC series, designed for facilitating non-inverting buffer functions with tri-state outputs.

Product Features and Performance

Non-inverting buffers

Dual element configuration

Each element has four bits

Tri-state outputs enhance bus interfaced applications

Suitable for operating on a voltage supply range from 1.65V to 3.6V

Capable of driving outputs with currents of 24mA both high and low

Operating temperature range from -40°C to +125°C

Product Advantages

Low voltage operation minimizes power consumption

High current drive capacity is suitable for a range of loads

Wide operating temperature range ensures reliability under extreme conditions

Key Technical Parameters

Number of Elements: 2

Number of Bits per Element: 4

Output Type: 3-State

Current Output High, Low: 24mA, 24mA

Voltage Supply: 1.65V ~ 3.6V

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

Built to operate reliably in extreme temperatures and voltage fluctuations

Conforms to rigorous safety standards for electronic components

Compatibility

Compatible with various microcontrollers and digital systems requiring voltage levels within the specified range

Application Areas

Telecommunications

Computing systems

Data processing equipment

Signal distribution

Industrial electronics

Product Lifecycle

The product status is active

Currently not nearing discontinuation

Ongoing support and availability of replacements or upgrades

Several Key Reasons to Choose This Product

High reliability in diverse operating environments due to the extensive temperature range

Energy-efficient operation with low voltage requirements

Flexible application due to tri-state output capability facilitating bus communication systems
