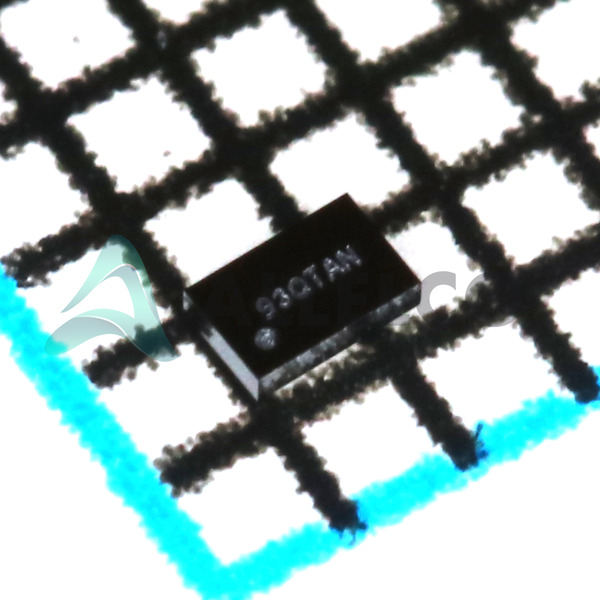

SN74LVC1T45YZPR - Texas Instruments

Manufacturer Part Number

SN74LVC1T45YZPR

Manufacturer

Texas Instruments

Introduction

Single-bit bidirectional voltage level translator

Product Features and Performance

Bidirectional signal transmission

Compatible with various voltage levels

Supports up to 420Mbps data rate

Operates across a wide temperature range of -40°C to 85°C

Product Advantages

Compact 6-XFBGA package for space-saving design

Low power consumption

Minimal signal distortion

Key Technical Parameters

Channels: 1 Bidirectional

Supply Voltage VCCA: 1.65V to 5.5V

Supply Voltage VCCB: 1.65V to 5.5V

Data Rate: 420Mbps

Operating Temperature: -40°C to 85°C

Mounting Type: Surface Mount

Quality and Safety Features

High reliability for long-term performance

Robust design ensures operation in varying conditions

Compatibility

Interfacing between different voltage logic levels

Application Areas

Data communication

Consumer electronics

Microprocessor/microcontroller systems

Product Lifecycle

Currently active

No known discontinuation, replacements, or upgrades mentioned

Several Key Reasons to Choose This Product

Allows seamless voltage level translation between devices

Ensures high-speed data transfer with minimal latency

Flexible use with different logic level standards

Supports high-density mounting due to small form factor

Texas Instruments' reputation for quality and support
