SN74LVC1G86DRLR - Texas Instruments

Manufacturer Part Number

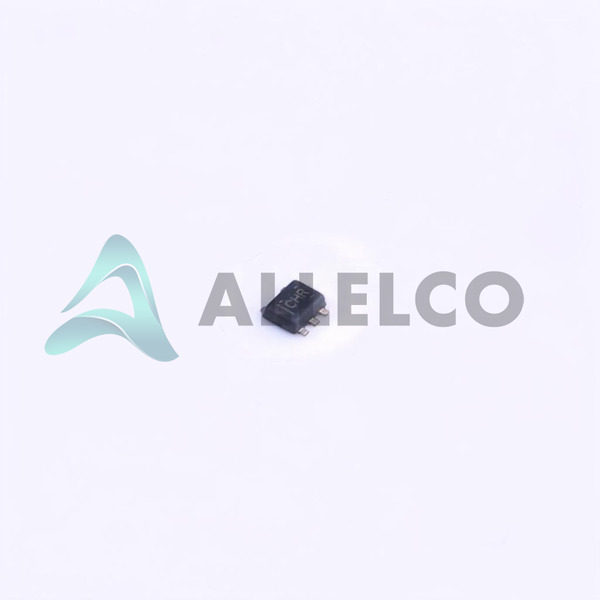

SN74LVC1G86DRLR

Manufacturer

Texas Instruments

Introduction

Single 2-input XOR gate

Part of the 74LVC (Low-Voltage CMOS) logic family

Designed for general-purpose logic applications

Product Features and Performance

65V to 5.5V supply voltage range

Supports inputs and outputs of 1.65V to 5.5V

4ns maximum propagation delay at 5V and 50pF load

Low power consumption with 10μA maximum quiescent current

32mA maximum output current, both high and low

Product Advantages

Wide supply voltage range for flexibility

Fast switching speed for high-performance applications

Low power consumption for energy-efficient designs

Robust output drive capability

Key Technical Parameters

2 inputs, 1 output

XOR (Exclusive OR) logic function

Surface mount SOT-553 package

Operating temperature range: -40°C to 125°C

Quality and Safety Features

RoHS3 compliant for environmental responsibility

Reliable and durable construction

Compatibility

Compatible with 3.3V and 5V logic families

Suitable for a variety of digital logic applications

Application Areas

General-purpose digital logic circuits

Signal processing

Interface and control applications

Product Lifecycle

Currently in active production

Replacement or upgrade options available from Texas Instruments

Several Key Reasons to Choose This Product

Wide supply voltage range for design flexibility

Fast switching speed for high-performance systems

Low power consumption for energy-efficient designs

Robust output capabilities for driving various loads

Reliable and environmentally-friendly construction

Compatibility with common logic families
