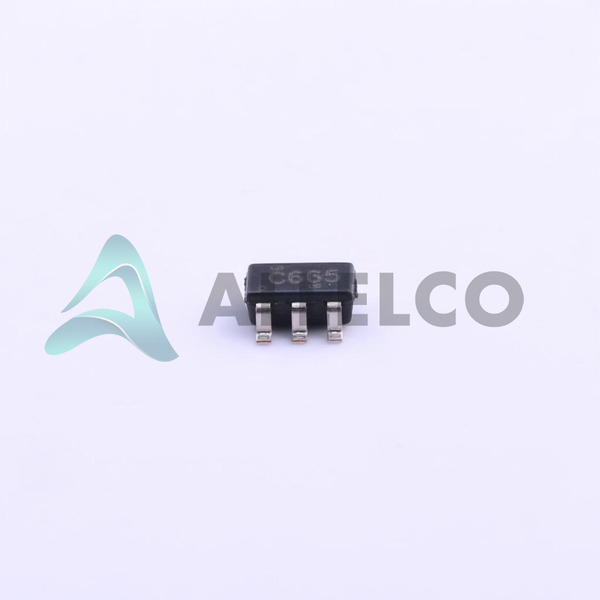

SN74LVC1G66DBVR - Texas Instruments

Manufacturer Part Number

SN74LVC1G66DBVR

Manufacturer

Texas Instruments

Introduction

Single-pole single-throw (SPST) analog switch for multiplexing and demultiplexing applications

Product Features and Performance

Single channel analog switch

Low on-state resistance of 10 Ohm

Wide operating voltage range of 1.65V to 5.5V

Fast switch time of 4.2ns (Ton) and 5ns (Toff)

High bandwidth of 300MHz

Minimal charge injection

Low channel capacitance of 6pF

Ultra-low leakage current of 100nA max

Product Advantages

High-speed switching performance

Compatible with a broad range of supply voltages

Low power consumption and leakage

Compact SOT-23-5 package saves space

Key Technical Parameters

SPST - NO configuration

1:1 multiplexer/demultiplexer circuit

5V maximum supply voltage

300MHz -3dB bandwidth

Quality and Safety Features

Designed to operate between -40°C and 85°C

Robust surface mount package

Compatibility

Compatible across multiple logic level voltages for interfacing

Application Areas

Signal routing in consumer electronics

Data acquisition systems

Communication devices

Portable and battery-powered devices

Product Lifecycle

Active product status

Not indicated as nearing discontinuation

Availability of replacements or upgrades not specified

Key Reasons to Choose This Product

Versatility in controlling analog and digital signals

Precision performance with high bandwidth and low on-resistance

Ideal for power sensitive applications due to low leakage current

Ease of use with simplified control of signal paths

Long-term reliability supported by Texas Instruments' reputation
