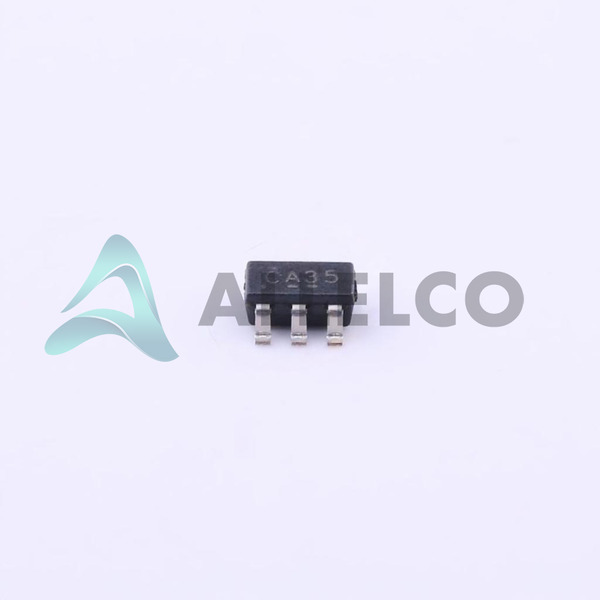

SN74LVC1G373DBVR - Texas Instruments

Manufacturer Part Number

SN74LVC1G373DBVR

Manufacturer

Texas Instruments

Introduction

SN74LVC1G373DBVR is a single D-type transparent latch from Texas Instruments designed for the smooth and efficient handling of digital data.

Product Features and Performance

Single D-Type Transparent Latch

Logic Family 74LVC

Compatible with 1.65V to 5.5V VCC operations

High Drive Outputs (-32mA IOH, 32mA IOL)

Propagation Delay Time of 1ns

Operating Temperature Range -40°C to 125°C

Product Advantages

Low power consumption

Supports 5V tolerant inputs

Optimized for high speed and low voltage applications

Suitable for buffering data inputs

Key Technical Parameters

Logic Type: D-Type Transparent Latch

Circuit: 1:1

Output Type: Tri-State

Voltage - Supply: 1.65V to 5.5V

Independent Circuits: 1

Delay Time - Propagation: 1ns

Current - Output High, Low: 32mA, 32mA

Mounting Type: Surface Mount

SOT-23-6 Package

Quality and Safety Features

Extended temperature range suitable for industrial applications

Designed and tested for reliable performance

Compatibility

Compatible with multiple supply voltages

Interfacing with microcontrollers or other logic devices within its voltage supply range

Application Areas

Servers

Networking equipment

Data storage devices

Consumer Electronics

Product Lifecycle

Active status

Part of the stable 74LVC family of logic devices

Several Key Reasons to Choose This Product

High-speed performance with low propagation delays

Flexible operating voltage suitable for various electronic systems

Tri-state outputs to connect to bus lines or buffer memory addresses

Industry-standard SOT-23-6 package for broad compatibility

Robust temperature performance for reliability in variable environments

Produced by Texas Instruments, a trusted industry leader in semiconductor manufacturing
