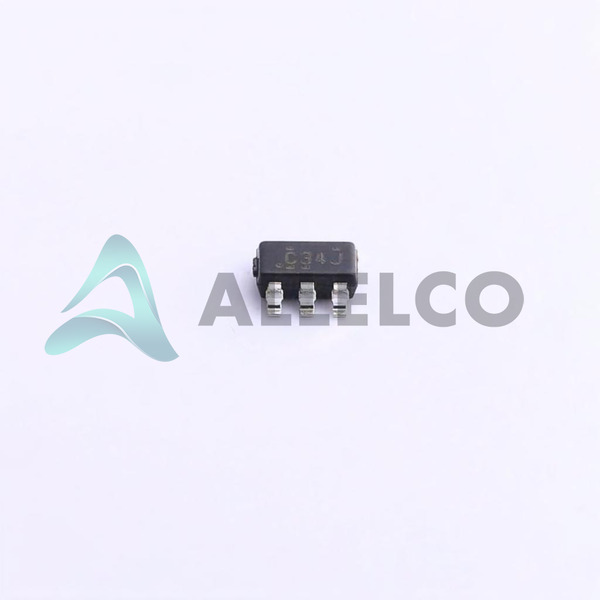

SN74LVC1G34DBVR - Texas Instruments

Manufacturer Part Number

SN74LVC1G34DBVR

Manufacturer

Texas Instruments

Introduction

Single buffer gate designed for low voltage operation

Product Features and Performance

Logic Buffers, Drivers, Receivers, Transceivers

Tape & Reel packaging for automated assembly

74LVC series high-speed CMOS device

Non-Inverting Buffer logic type

Single logic element

One bit per element

Push-Pull output type

Provides 32mA output current both high and low

Wide supply voltage range from 1.65V to 5.5V

Operational temperature range from -40°C to 125°C

Product Advantages

Low voltage operation compatible with modern microcontrollers

Supports 5V tolerant inputs

Low power consumption enhances battery life in portable applications

High output drive can directly drive LEDs or other loads

Key Technical Parameters

Supply voltage between 1.65V and 5.5V

32mA output current capability

Temperature range for operation from -40°C to 125°C

Surface Mount mounting technique

SOT-23-5 device package

Quality and Safety Features

Extended temperature range for reliability in harsh conditions

Lead-free and RoHS compliant for environmental safety

Compatibility

Compatible with 5V logic levels

Suitable for mixed-voltage environment interfaces

Easily integrated into existing designs with SOT-23-5 footprint

Application Areas

Consumer Electronics

Automation

Telecommunications

Computing

Industrial Controls

Product Lifecycle

Active status indicates the product is currently in production

Not reported as nearing discontinuation

Replacement or upgrade parts may be available

Several Key Reasons to Choose This Product

High-speed CMOS technology offers fast signal processing

Single gate design reduces complexity for simple logic functions

Ultra-small package saves PCB space

Flexible voltage compatibility enables use in various system designs

Robust temperature range suits industrial and automotive applications
