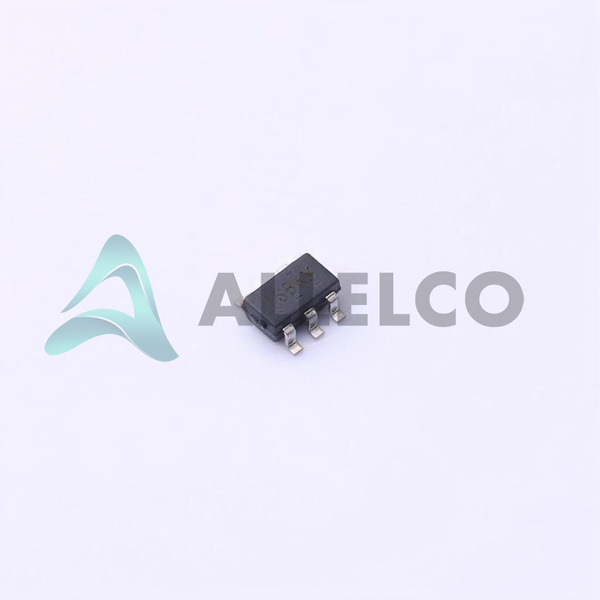

SN74LVC1G04MDBVREP - Texas Instruments

Manufacturer Part Number

SN74LVC1G04MDBVREP

Manufacturer

Texas Instruments

Introduction

Single Inverter Gate

Logic Level Translator/Voltage Shifter

Product Features and Performance

1 Inverter Gate

Operating Voltage: 1.65V to 5.5V

Propagation Delay: 4.5ns @ 5V, 50pF

Quiescent Current: 10μA (max)

Output Current: 32mA (High/Low)

Operating Temperature: -55°C to +125°C

Product Advantages

Compact SOT-23-5 package

Low power consumption

High-speed operation

Wide operating voltage range

Reliable ESD protection

Key Technical Parameters

Number of Inputs: 1

Number of Circuits: 1

Logic Type: Inverter

Input Logic Level (Low): 0.7V to 0.8V

Input Logic Level (High): 1.7V to 2V

Quality and Safety Features

RoHS3 Compliant

ESD Protection

Compatibility

Suitable for various digital logic applications

Application Areas

Voltage Translation

Logic Inversion

Signal Conditioning

Interface Circuits

Product Lifecycle

Currently in production

Replacement/upgrade options available

Key Reasons to Choose

Compact size

Low power

High speed

Wide voltage range

Reliable ESD protection

Suitable for diverse applications
